Rotor Unit Assembly

Educational Institution: Kolomna Institute , Branch of Moscow State Open University, Russia
Description: 3D models of components and assembly unit used for the main rotor assembly modeling. Advanced modeling operations were used when modeling parts. Assemblies and subassembly use mates.

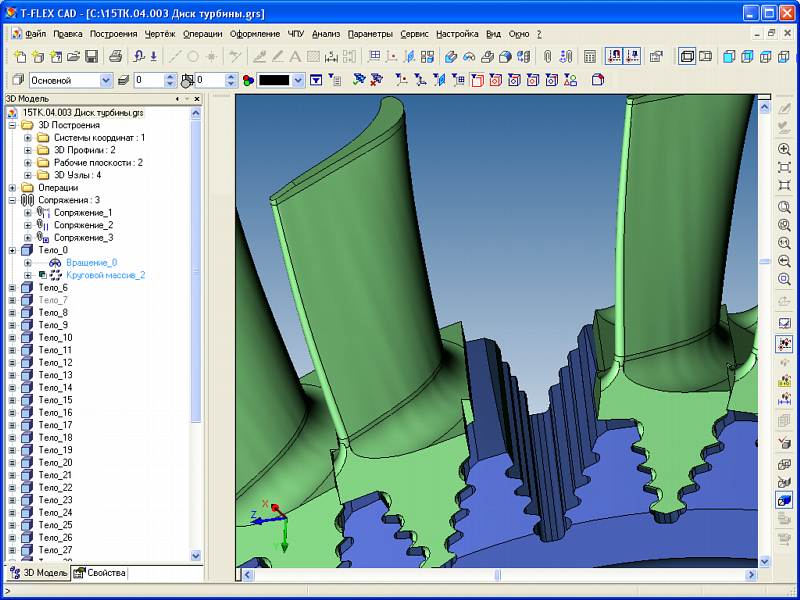

  •  Rotor unit assembly

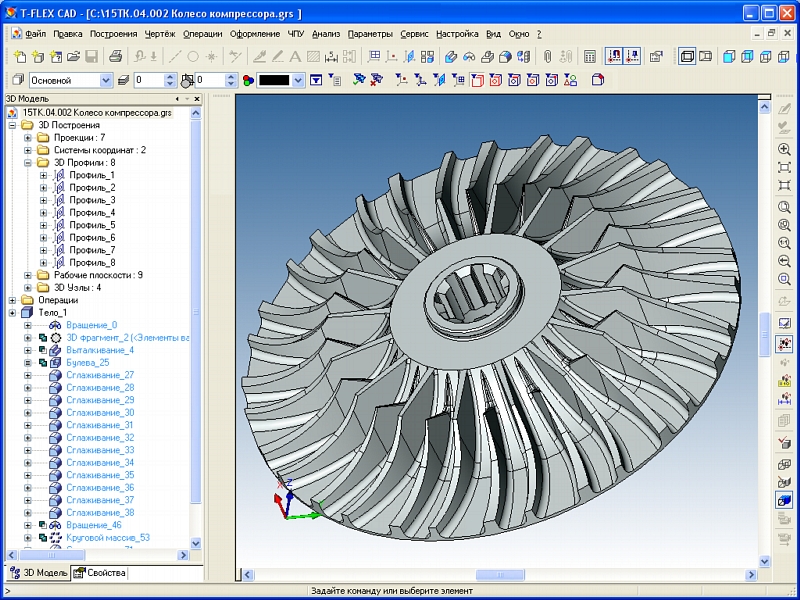

  •  Rotor unit assembly

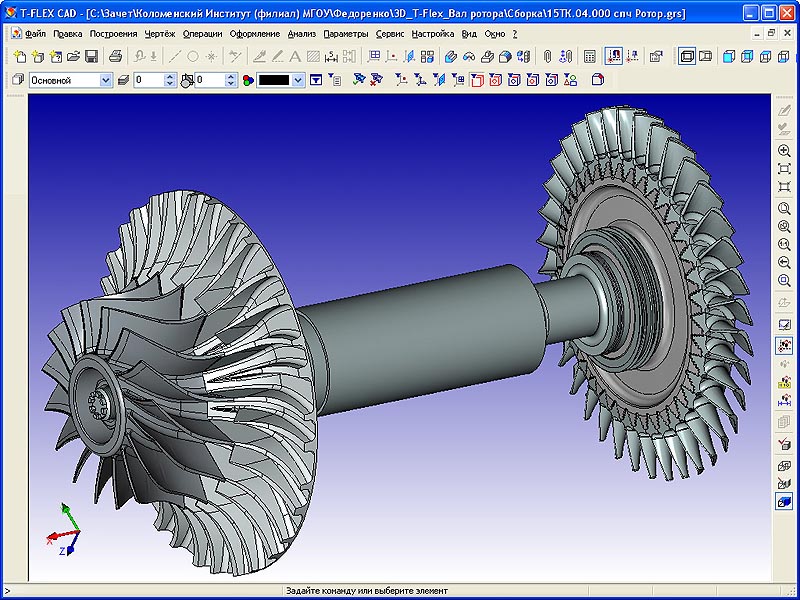

  •  Rotor unit assembly

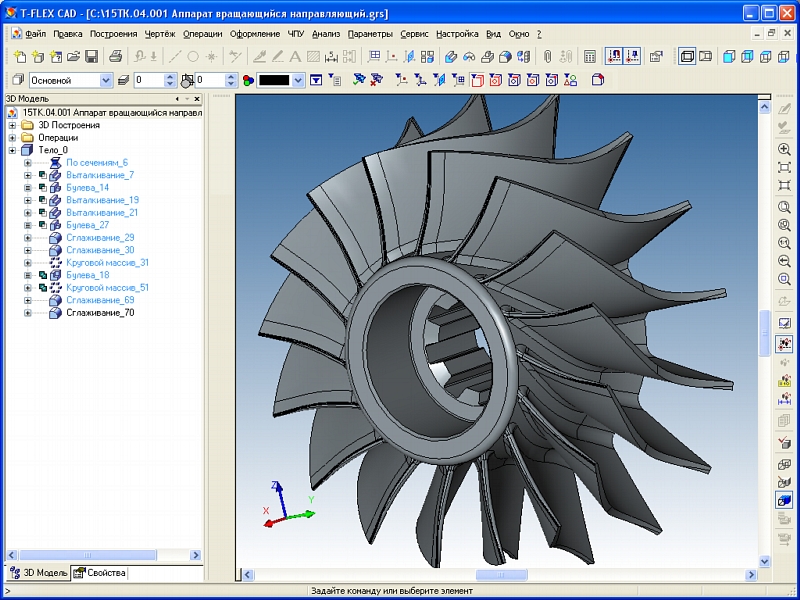

  •  Rotor unit assembly
