Parametric Model of Multi-spindle Drilling Head

Company: Cherkasky Bus
Industry: Machine-tool construction

Project Description

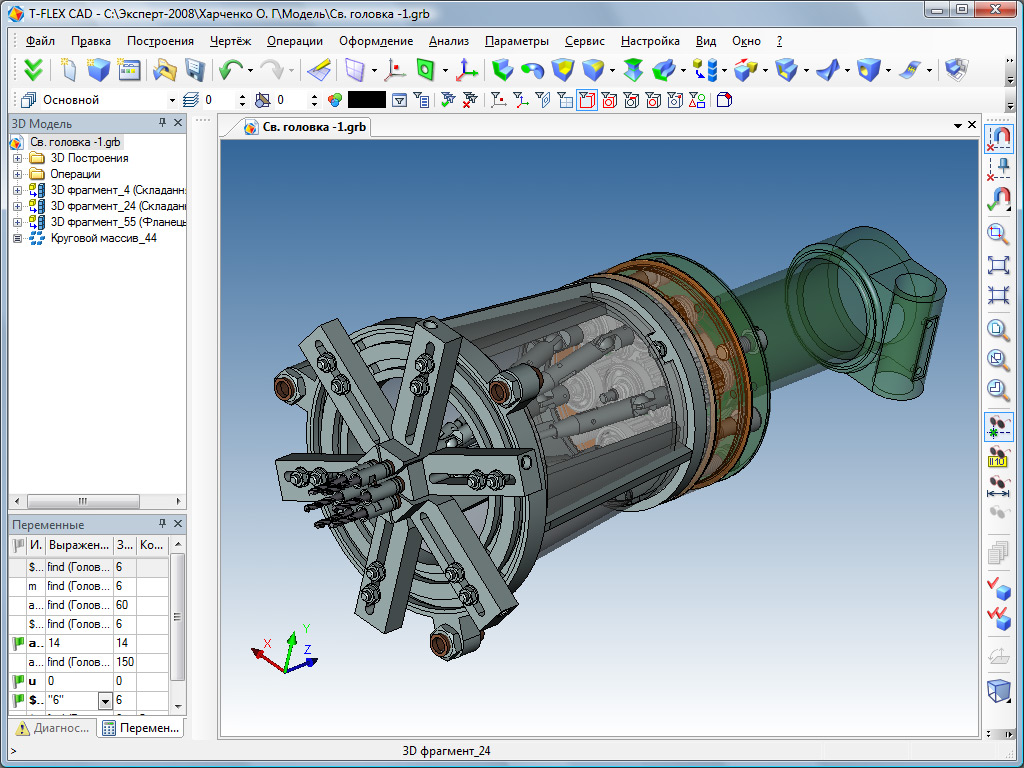

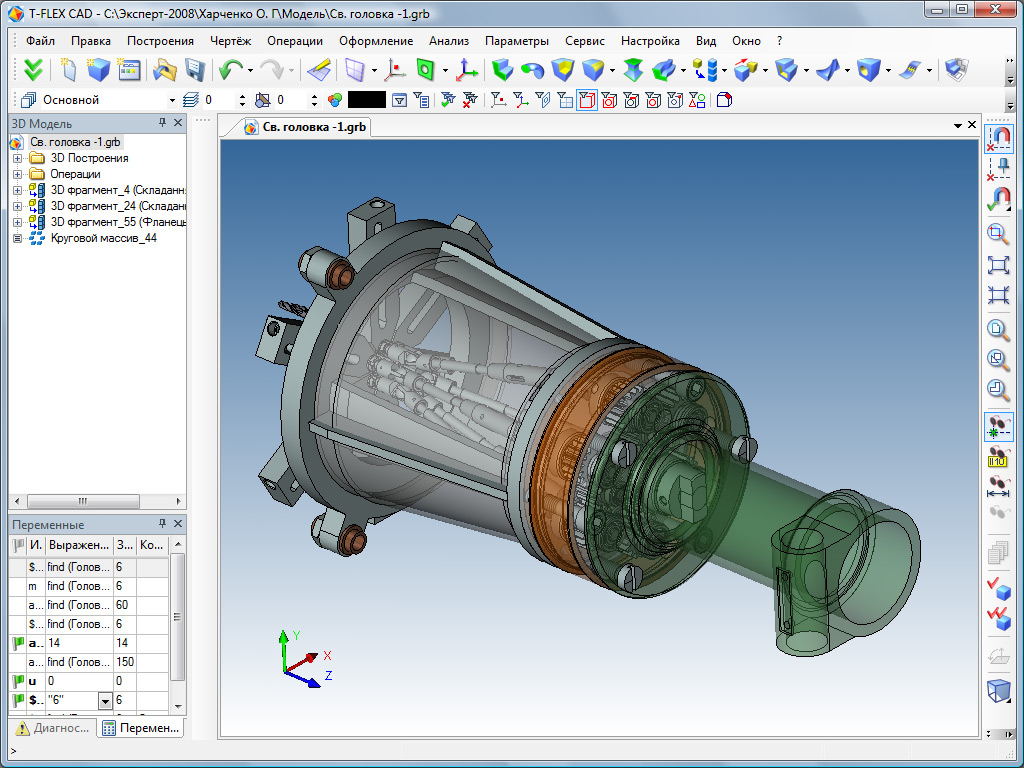

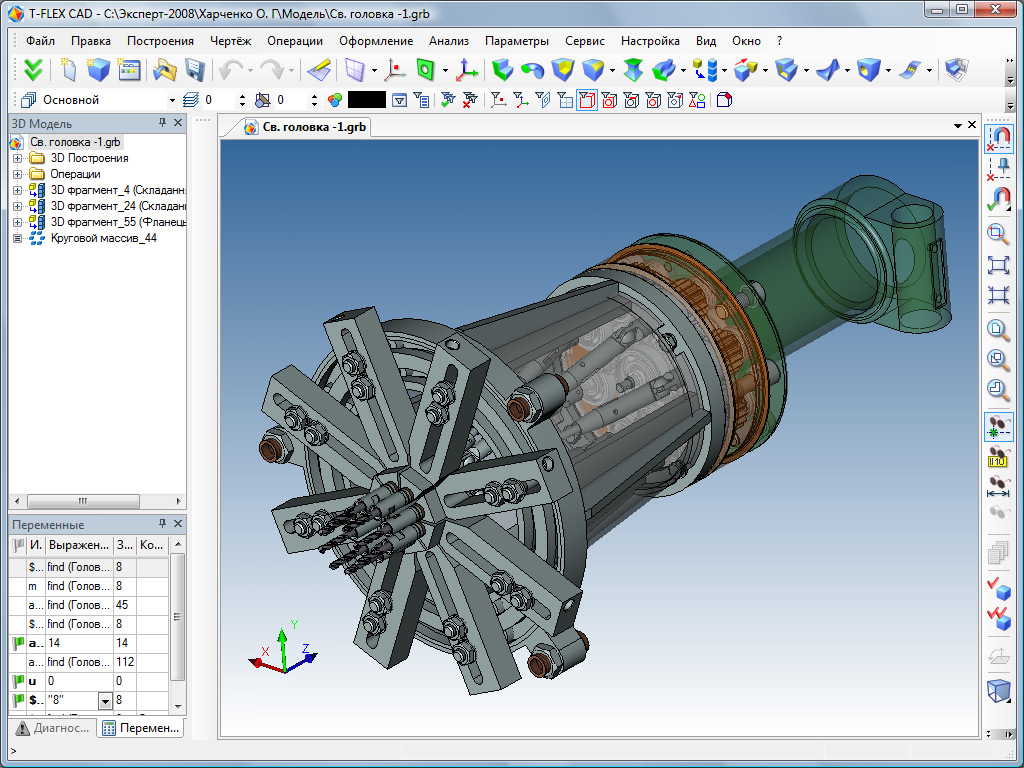

Multi-spindle drilling head is designed to machine holes of parts such as "flanges". The goal was to design 6- and 8-spindle drilling heads. These heads have different sizes and different number of components. With manual design it would be necessary to create two sets of design documentation, but the use of T-FLEX CAD allowed to build parametric model that changes assembly composition depending on user-defined parameters. 6-spindle head consists of 283 parts; 8-spindle – of 366 parts. 3D models, drawings, and BOMs are updated automatically depending on the option selected for the drilling head.
