Moving Assemblies

Navigation:  Service Commands and Tools >

Moving Assemblies

Previous pageReturn to chapter overviewNext page

The command “AM: Move Assembly” serves for moving a composite document to another location in the filesystem or for zipping the assembly into one file.



Icon

Ribbon

Assembly → Component Links→ Move Assembly

Keyboard

Textual Menu

<AM>

File > Assembly > Move Assembly

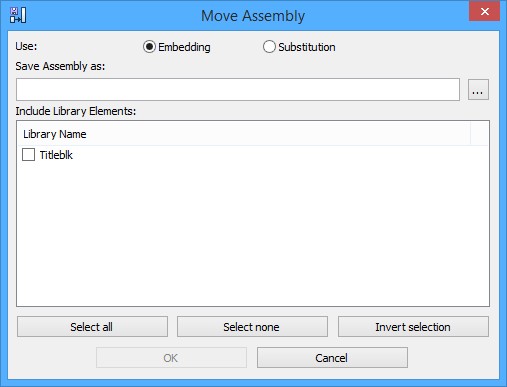

After calling the command, the “Move Assembly” dialog box will be displayed. In it, you need to specify the new location and name of the moved document and the moving method:

Embedding. In the embedded moving, all linked files are stored within the assembly file. This method is convenient when you need to move a composite file to another computer, since it resolves in one common file.

Substitution. When moving by substitution, all linked files are gathered into one folder named after the file of the main document and located in the same folder.

In the lower pane of the “Include Library Elements”  dialog, specify the list of libraries whose elements are used in the current document. The flags before the names of each library allowed specifying whether to move the library elements, to which there are links in the current document.
