Welding |

|
Welding |
|

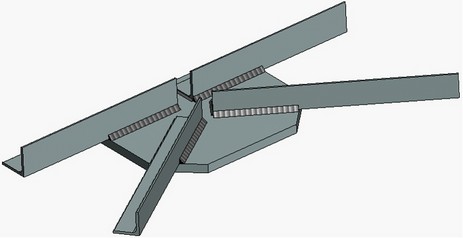

In T-FLEX CAD there is a group of commands intended for design of welded parts. Welding commands are gathered in the “Tools|Welding”submenu. With the help of these commands it is possible to create on a 2D drawing or a 3D model various types of standard welded seams, and if necessary nonstandard ones. For created welded seams it is possible to automatically create captions and make tables of welded seams.
To invoke welding commands, the main toolbar can be used (the “Welding” set).
This chapter describes the commands used for creation of welded seams on a 2D drawing, i.e., 2D welded seams.
