Routing Styles

Previous pageReturn to chapter overviewNext page

Style is a group of settings designed for automatic filling of routes with the routing objects. Styles usually correspond to standards that are commonly used in the routing design. For example, parts of the pipeline must often comply with certain requirements in length and diameter; in addition, these parts should include fittings of certain materials.

Style definitions are managed in the editor of Styles. With the editor, you can view, add, edit, and delete styles. The definitions of styles can be also imported and exported using file in .xml format. You can change any of the default styles, or use them as the basis for creating new custom styles. In addition, custom styles can be created based on the empty style.

Editor of styles can be called from the Routing menu:

Icon

Ribbon

Routing → Options → Styles

Keyboard

Textual Menu



Tools > Routing > Styles

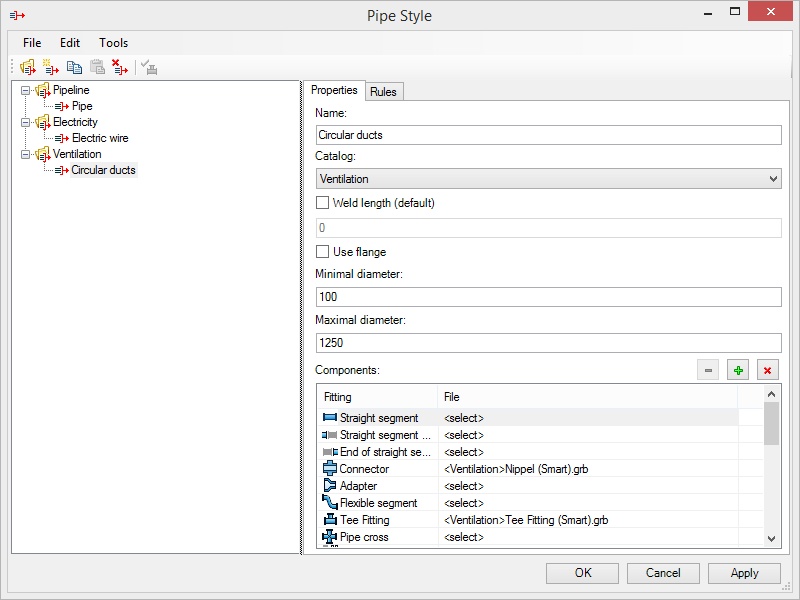

After calling the command you will see the dialog of Routing Styles editor.

clip1586

There is a toolbar in the upper part of the dialog:

clip1587 Create Catalog creates new folder-catalog for styles.

clip1588 Create Style creates new style in the current catalog.

clip1589 Copy Style copies selected style.

clip1590 Paste Style paste copied style into selected catalog.

clip1591 Delete deletes style or catalog.

clip1592 Update information about fittings – updates information about routing objects (fittings).

On the left there is a list of catalogs and styles availabe for usage.

Created styles can be exported and imported in *.xml format with the appropriate commands in the File menu.

clip1593

Parameters of the selected style are displayed in the right pane.

Properties tab

Name. In this field you can set the name of style that will appear in the list in the left pane.

Catalog. The drop-down list contains catalogs that may include the selected style. You can create a new catalog by selecting the appropriate menu item from the drop-down list, if desired.

Weld length (default). When the flag is active, you can set the default weld length.

Use flange. Defines the usage of flanges for style.

Minimal and Maximal diameters define the permissible routing diameters.

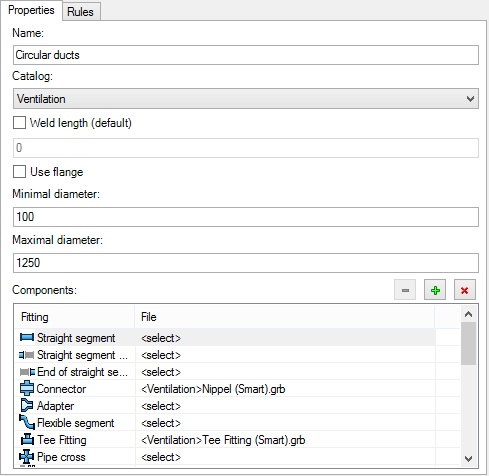

Components window displays the list of fitting types and their corresponding files.



clip1594

You may use the following button when working with the Components dialog:

clip1595 Delete Component. Deletes selected file from the list.

clip1596 Select Component. Adds file to the list.

clip1597 Delete All Components. Deletes all files from the list.

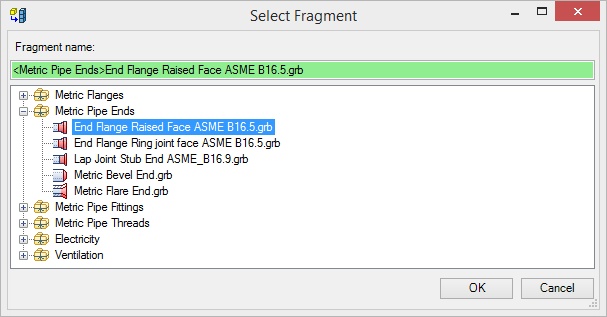

After mouse click in the <Select> field or pressing buttonclip1598, the following window appears:

clip1599

This window displays all library files available for selection.

If the fragment name is highlighted in red, it cannot be selected.



Rules tab.

Minimal pipe length, Maximal pipe length - set the minimal and maximal length of the pipeline segment.

Increment of pipe length. You can specify the length of increment. Increment of length is a step with which the system takes into account the above conditions.

Use Pipe operation to fill indirect path segments.

When the flag is set the pipeline will be bent with a given style.

clip1605

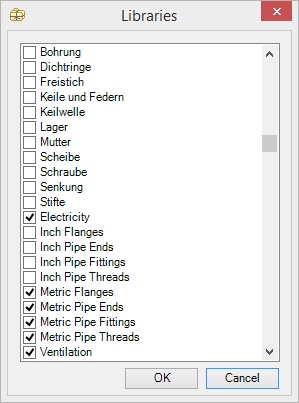

List of libraries for selection consists of libraries marked as available for selection. Use Tools >> Libraries command of Routing Styles dialog menu to mark necessary libraries in the list of all system libraries.



clip1607

Filling Route with Style

To apply styles, use command route Fill route with style, available for all types of routings.

Icon

Ribbon

Routing → Construct → Fill route with style

Keyboard

Textual Menu



Tools > Routing > Pipeline > Fill route with style



The following actions are available in automenu after activating the command:

clip1609

<P>

Select Route

clip1610

<B>

Select start point on route

clip1611

<E>

Select end point on route

clip1612

<D>

Cancel start and end points

clip1613

<A>

Select alternative routes

clip1614

<L>

Cancel alternative routes

clip1616

<N>

Next

clip1617

<M>

Back

clip1618

<C>

Clear Route

clip1619

<R>

Resume command operation after applying changes

clip1620 Upon activation, you need to select the main route to create routing.



clip1621 and clip1622 allow to set limit for routing. Element will be generated or deleted on the specified segment of the route.

clip1623 Cancels selection of the start and end points.

clip1624 Allows you to choose alternative the routes. These routes must be connected with the main route.

clip1627 Cancels selection of all alternative routes.

clip1628 Provides preview of the operation result. After the first press preview is done on the main route clip1629, after the next pressing – on alternative clip1630.

clip1633 Returns to the previous preview step.

clip1634 Deletes all routing components of a route - nodes, LCS, fragments.

clip1636 Allows you to create a new routing immediately after the creation of the current routing.

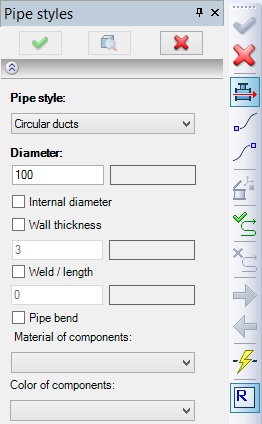

In the Properties window, you can specify parameters for the created element.

Pipe Style - one of the styles for filling routes can be selected from the drop-down list. The list stores up to ten previously used styles.

Diameter – pipeline diameter is set here. Diameter should be in the range specified in the parameters of the selected style.

Internal Diameter - when checked, the defined diameter is treated as internal.

Wall Thickness - allows you to specify thickness of the pipe wall.

Weld / length – this  field defines the gap between the components for welding.

Pipe bend. If library does not have appropriate fitting for rounding, then this option will bend the pipe. When you bend pipe weld option is not taken into account.

Material of components. This list contains materials used in the current model.

Color of components. Color of shading for pipeline elements.

Green and red colors in the data fields show the possibility of correct usage of the entered value.

clip1637



clip1638

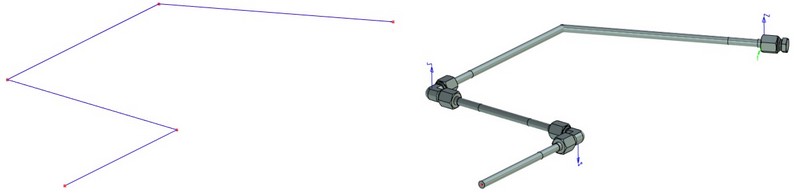

Original route

Route filled with style
