Creating Welded Seam Caption
Creating Welded Seam Caption |
|
A 3D weld annotation is created by the same command as an annotation for a 2D weld:
Icon |
Ribbon |
|---|---|
|
Assembly → Assembly → Weld → Weld Annotation |
Keyboard |
Textual Menu |
<WN> |
Tools > Weld > Weld Annotation |
Working with this command is described in the “Creating Welded Seam” chapter.

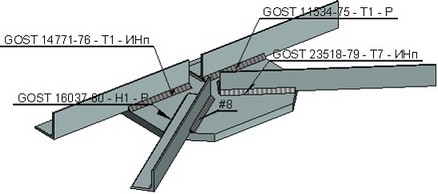

A 3D weld annotation is a 3D annotation, whose text is automatically generated based on the weld parameters.
The 3D weld annotation can also be applied on a 2D projection as a 2D annotation, when it is selected within the command of creating the annotations for the projection line of the 3D weld.
