Array/Copy/Symmetry of Fragments

Предыдущая страницаВ началоСледующая страница

In arrays, copies, symmetries, a new type has added - the array/copy/symmetry of 3D fragments, which is intended to work with assemblies.

The new type allows you to select only 3D fragments as copy objects.

New1769

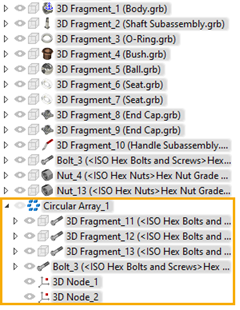

The operation gets into the model tree in the form of an item, inside which all the elements of the array/copy/symmetry are fully functional fragments. This allows you to apply, for example, transformations, exploded view scenario, and other operations to selected elements of arrays/ copies/symmetries.

New1770

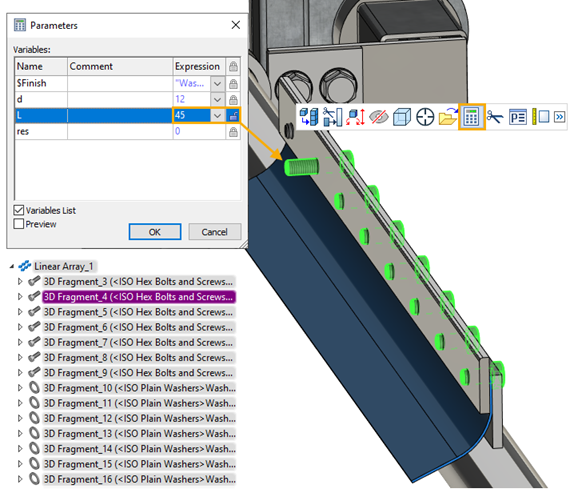

An important feature of the array of fragments is the ability to control the inheritance of parameters.

For example, a fragment instance receives some of the parameters from the source fragment, while the other redefines itself.

New1771
