Invert Visibility

Предыдущая страницаВ началоСледующая страница

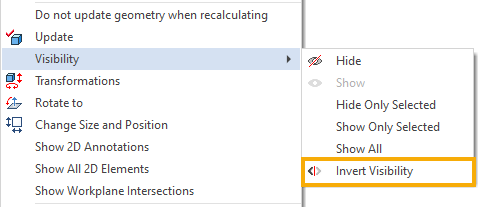

The newInvertVisibility20x20 Invert Visibility command is now available in the contextual menu, which appears upon right-clicking mouse right 3D elements or an empty space of the 3D scene.

02_VisibilityCM

Alternatively, the command can be called using the <3CB> or <Ctrl>+<Shift>+<B> keys.

The command switches visibility of each element in 3D scene to an opposite one, i.e. hides visible elements and shows hidden elements.

The command does not affect elements, whose visibility is controlled by variables.

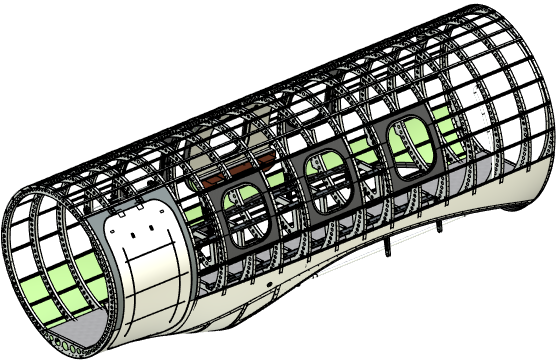

02S_InvertVisibility1

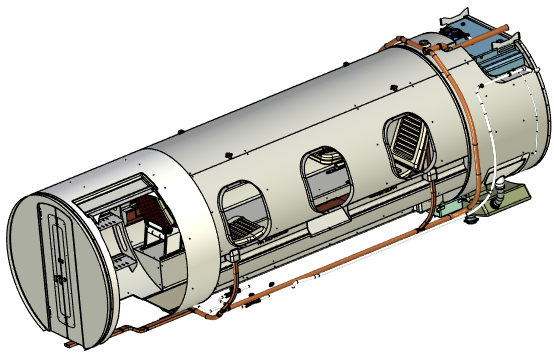

02S_InvertVisibility2
