Sheet Metal

The interface of various windows of parameters of sheet metal operations has been updated, in particular, the Corner operation has been redesigned.

You can now select boundary faces in an operation.

In operations where corner adjustment is available, such as Flange, Hem, Convert Solid to Sheet Metal, etc., the corner setting has also been updated.

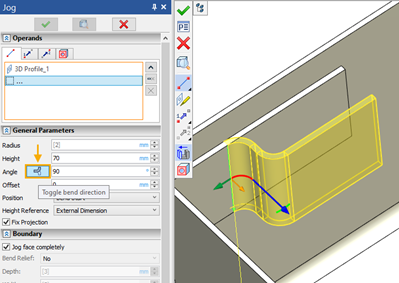

In the Jog operation, the ability to toggle the bend direction has been added.

Topics in this section:

•Flange Length Reference

•Position of Flange in relation to Baseline
