Rotating Camera in 3D Window

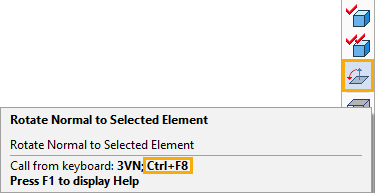

Rotate Normal to Selected Element

Now the command may also be called, when working with other commands. In such case, the status of the active command will be saved, and the system will return to it, upon exiting the Rotate Normal... command

The accessibility of the command no longer depends on, whether a flat object is selected or not - the selection may be performed after calling the command.

Also, the command can now be called by pressing <Ctrl>+<F8> buttons.

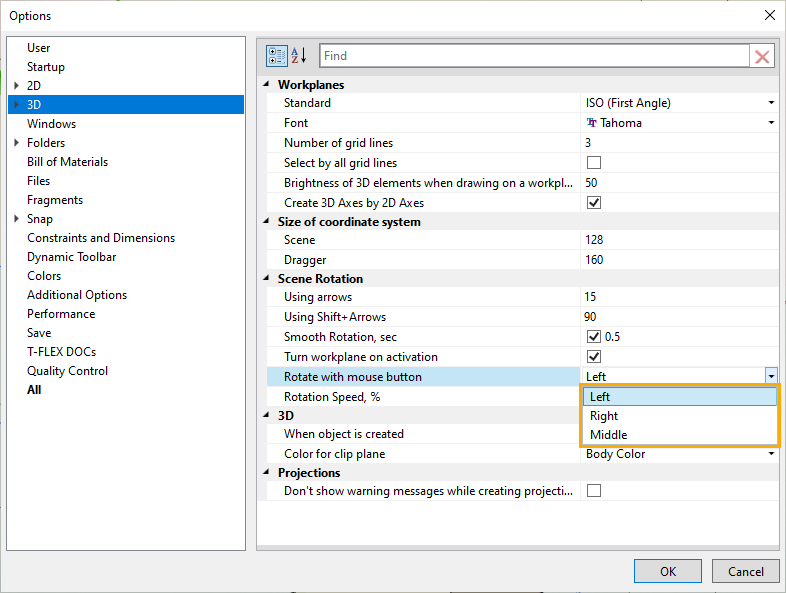

Rotate with Mouse Button Setting

Outline is input with the right mouse button pressed and the left button is used for the scene rotation. You can change the settings for scene rotation button: there is a Rotate with mouse button list in the Options. The list is in 3D tab in the Scene Rotation group. If the right mouse button is used for rotation, the left button is used for selecting the objects. Also added the ability to rotate the scene using the middle mouse button.

Set Center of Rotation

In the new version of T-FLEX CAD, the Set Center of Rotation command has been updated. Using the command has become more intuitive thanks to the updated interface.
