Updating the Functionality of Drawing Zones

Предыдущая страницаВ началоСледующая страница

A lot of work has been done on the arrangement mechanism and zones detecting in the drawings.

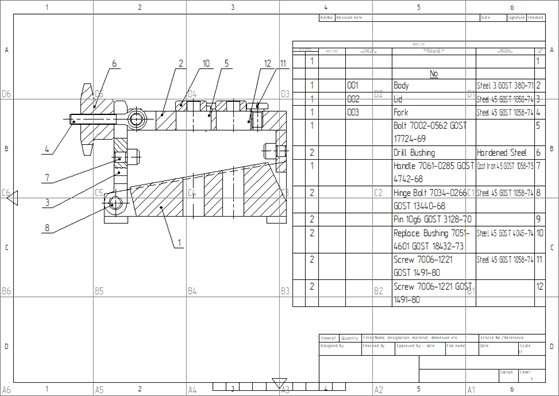

New17218

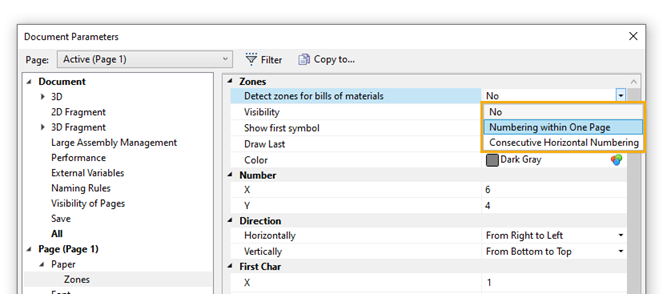

In the document parameters, you can now select numbering within one page or consecutive horizontal numbering as a detection of zones for bill of materials.

New17219

Also added the ability to change the page orientation without losing the division of the page into zones.

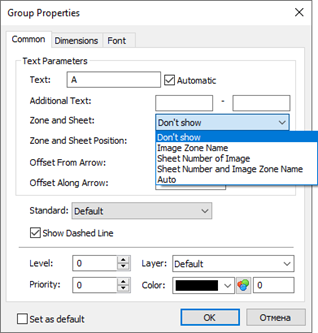

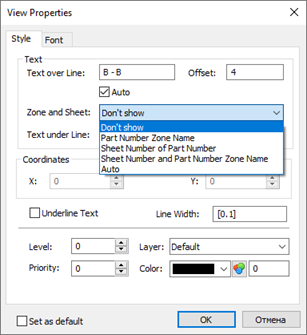

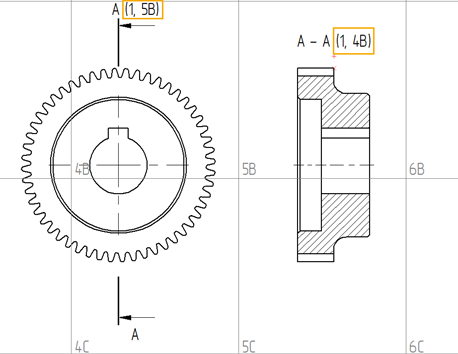

The designation of the view/cut/section can now display the name of the zone where the additional image is located, and vice versa:

New17220New17221

New17222

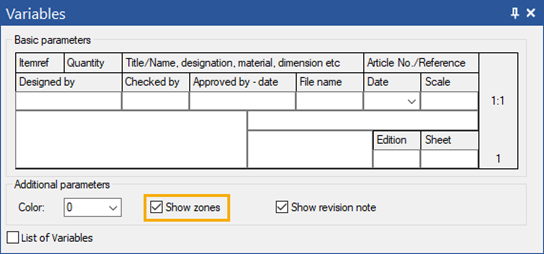

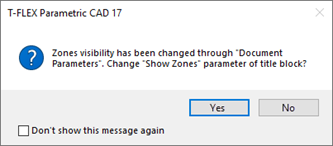

Also, synchronization between the division of the page into zones and zones of title blocks is implemented.

New17223

New17224

Also added the ability to change the page orientation without losing the division of the page into zones.
