Blend Parameters of Loft

If the resulting body is solid then it can be applied blend and chamfer options. Blending and chamfer creation can be done on the source and target surfaces independently.

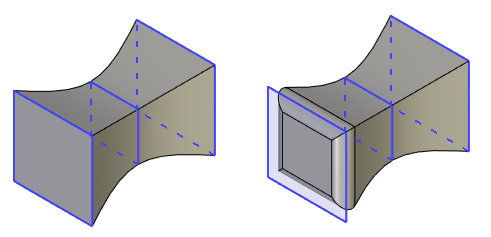

Source blend. Setting this attribute defines the mode of edge blending on the original surface, that is the surface on the side of the start section. Blending is done in the way of Round or Chamfer. The parameter of the blend is defined in the next box.

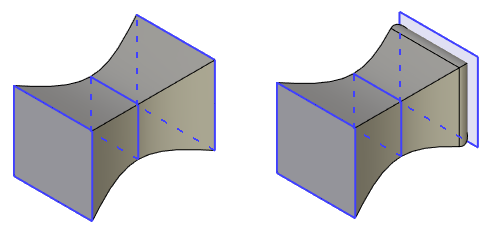

Target blend. Setting this attribute defines the mode of edge blending on the target surface, that is the surface on the side of the end section. Blending is done in the way of Round or Chamfer. The parameter of the blend is defined in the next box.
