“Large Assembly Management” Tab |

|
“Large Assembly Management” Tab |
|

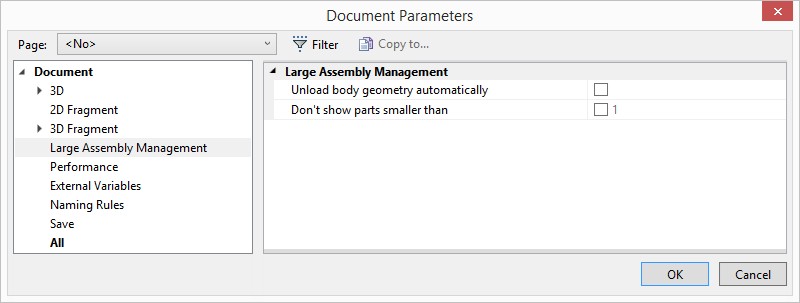

“Large Assembly Management” tab serves to define parameters that optimize the use of computational resources and RAM when working with a large assembly model. You can set the following resource-saving modes:
Unload Body Geometry Automatically. When this parameter is set, the model enters the Large Assembly Mode. In this mode, some information about the assembly model geometry is dumped on the hard drive. This information will be loaded as it becomes necessary. A detailed information about the large assembly mode is provided in the chapter “3D Assemblies Creation” of the T-FLEX CAD 3D modeling user manual.
Don't show Parts Smaller than. If this parameter is set, then 3D objects with the size less than the specified (in model units) will not be displayed in the 3D model.
