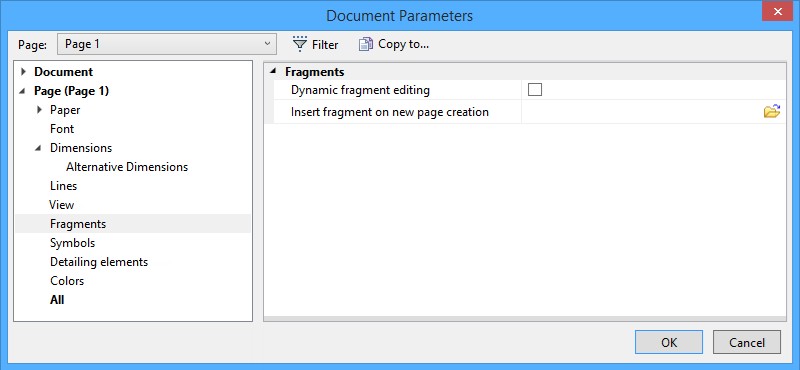

“Fragments” Tab |

|
“Fragments” Tab |
|
Dynamic Fragment Editing. When this parameter is set, dynamic regeneration of the model and redrawing of the image occur upon inserting and editing 2D fragments. This makes the work with fragments clearer. However, this is not suitable for drawings with large number of elements since it slows down the work.
Insert Fragment on new Page creation. In the provided input box, enter the path to the fragment to be automatically inserted upon new page creation. If the fragment is a multi-page document, then the first page will be inserted. This parameter is defined automatically when creating BOM.
