Replace Faces

Navigation:  Face Processing Operations >

Replace Faces

Previous pageReturn to chapter overviewNext page

General concepts

This command allows replacing a geometrical surface underlying the selected face, by another geometrical surface.

clip7018     clip7019

In the usual command flow, the faces to be replaced are selected in pairs with the replacement surfaces (by selecting elements with these underlying surfaces). The surface underlying the face being replaced is substituted by the replacement surface. As a result, the face being replaced changes its shape according to the shape of the replacement surface. The side faces that bound the face being replaced are extended or trimmed to the intersection with the replacement surface. If several pairs of faces to replace - replacement surfaces were selected at once, this procedure is repeated for each pair.

clip7020     clip7021

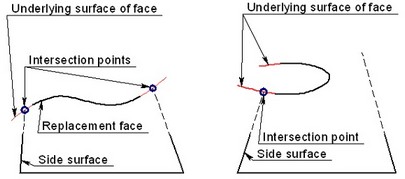

It is possible that no intersection between the side faces and the replacement surfaces will be found despite extending the side faces. Then the command will end up in an error message.

clip7022

  Command is successful                  Command fails



Using the command

The command "3ZR: Face Replace" can be called as follows:

Icon

Ribbon

3D Model → Special → Faces → Replace Faces

Keyboard

Textual Menu

<3ZR>

Operation > Face > Replace Faces



To create the operation, do the following steps:

1. Select sets (pairs) of faces to replace and the replacements.

2. Define advanced parameters (optional).

3. Confirm operation creation.



Selecting faces to replace and replacements

You can select multiple pairs of faces to replace and replacement surfaces.

To select faces to replace, use the option:

       <F>        Select replaceable faces

A face to replace could belong to a sheet body, but in that case it should be "surrounded" by adjoining faces on all sides.

To select replacement faces, use the option:

       <R>        Select replacement faces

When specifying replacement faces, you can select not only faces, but also edges, workplanes and 3D profiles. Selecting a workplane or a flat 3D profile is similar to selecting an appropriately positioned flat face. If a non-flat 3D profile was selected, the system will use its underlying surface as the replacement. An edge can be selected if it fully lies in a plane, but is not straight.

You can also start selecting a face to replace and a replacement surface via the property window. Working with the "Faces" list is similar to working with other such lists.

s1278

Besides simply selecting the replacement surfaces, it is also possible to select a sheet body. The following option is used for this purpose:

       <S>        Select sheet body

When using this option, you can select sheet bodies, faces and 3D profiles.

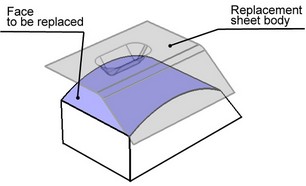

The faces being replaced will be replaced by one or multiple new faces copying the shape of the replacement sheet body.

clip7028 clip7029

While only a single sheet body is allowed, you can select multiple faces to replace at once.

clip7030clip7031

When using a sheet body, the faces to be replaced may not have holes, otherwise the command will fail. Besides that, the replacement sheet must be large enough, so that the intersection could be constructed between the replacement sheet and the extensions of the adjacency faces.

To cancel selection of a particular pair of the face to be replaced - the replacement surface, you can use the properties window and the button clip7032. As for canceling selection of all faces, you can use the option:

       <X>        Cancel selection of all faces and surfaces

Selection of the replacement sheet body can be canceled by the option:

       <K>        Cancel sheet body selection



Defining advanced parameters

As was mentioned above, the adjoining faces are grown or trimmed to the intersection with the replacement surfaces. If two intersections are found, which one will be picked by the system? By default, the intersection is accepted with the part of the surface where the normal points towards the faces to be replaced.

However, in some cases, you may want the system to pick the second intersection choice. For this purpose, use the "Reverse" flag, located at the lower portion of the property window.

If the flag is set, the system will pick the intersection with the portion of the replacement surface, whose normal points away from the face being replaced.

clip7036



clip7037





"Reverse" is Off

clip7038

"Reverse" is On
