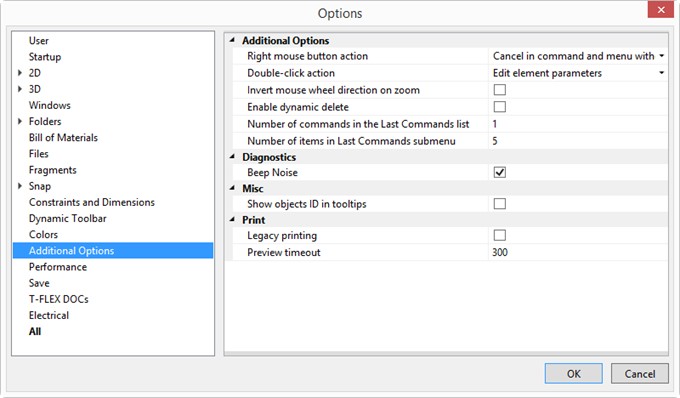

“Additional Options” Tab

Additional Options group

●Right mouse button action. The parameter specifies action type, which is performed upon pressing . You can select one of the types using the drop-down list. According to your choice after pressing in different modes the corresponding context menu will appear or the current command will be cancelled.

For example, if the Menu in Commands… item is selected, the context menu duplicates the automenu upon pressing during the command execution.

●Double-click action. Specifies action type, which is performed upon double-clicking left mouse button on model element.

●Invert mouse wheel direction on zoom. This option serves to switch to the opposite the zooming direction in the system windows with the mouse wheel spinning.

●Enable dynamic delete. This flag allows us to activate the mode of “quick deletion”. To delete any 2D element, it is sufficient to move the cursor to the element (the element will be highlighted) and press <Del>.

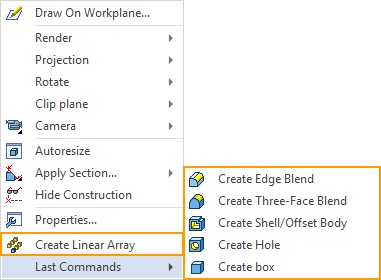

●Number of commands in the Last Commands list. The parameter determines the number of recent commands that will be displayed in the context menu called in the 3D window.

●Number of Items in Last Commands submenu. The parameter determines the number of recent commands that will be displayed in the “Last Commands” submenu of the context menu called up in the 3D window.

Diagnostics group:

●Beep Noise - Messages in Diagnostics window will be accompanied by a beep noise.

Misc group:

●Show objects ID in tooltips. When you hover the cursor over an object, its ID will be displayed in a tooltip.

Print Group

●Legacy printing. Use legacy Print command.

●Preview timeout. If the maximum drawing time at print preview exceeds the specified value (milliseconds), redrawing is not performed and Show button appears.
