Parameters Dialog of Geometric Entity

Geometric entities are vertices, edges, loops and faces belonging to bodies, 3D profiles and 3D paths.

Geometric entity's parameters dialog can be invoked in following ways:

•by double-clicking an entity in the 3D scene or in the model tree;

•from the contextual menu invoked by clicking an entity in the 3D scene or in the model tree;

The second method is available not only for the entities displayed in the tree, but also for any other vertex, edge, loop or face existing in the model.



A Name of an element can be customized in vertex, edge and loop parameters dialogs.

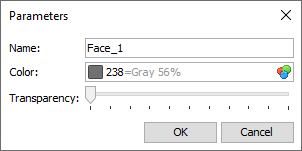

Face parameters dialog also allows to customize Color and Transparency.

The result of changing these parameters is only visible in the Shading view style
