Notch of Face Blend

Предыдущая страницаВ началоСледующая страница

Sometimes, the walls of FaceBlend20x20 Face Blend may include topology insertions (Notches) that cross the line of contact of the blend surface. A special option Notch helps identify such insertions and let blending extend in the affected area trimming the blend surface with the faces adjacent to the wall. Without this option, the blending would stop before the affected area, where the line of contact is crossed.

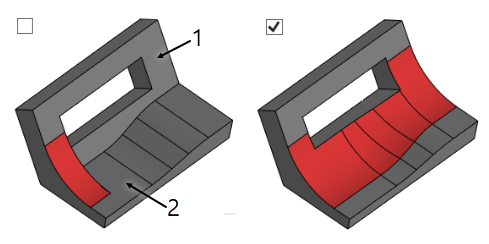

Face-face blend without notch identification

Face-face blend with notch identification

14BlendFaceCreate27S

1. Left wall

2. Right wall
