Blend Parameters of Sweep |

|
Blend Parameters of Sweep |
|
The options in this tab allows you to round the faces of the resulting body.
|
Source operation without face blending |
|

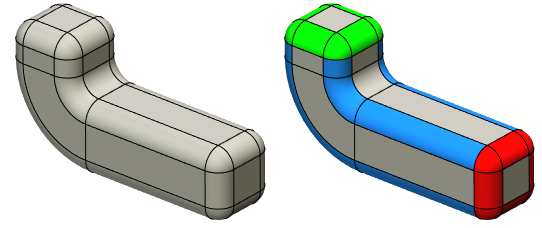

Body with face blending |
Green highlights the blended edges at the start, red at the end, and blue are the side edges.
For initial and final faces, it is possible to select a blending profile:
|
Round |
|
Chamfer |
