Common Parameters of Sheet Metal Commands > Flange |

|
Common Parameters of Sheet Metal Commands > Flange |
|
The Flange parameter group allows you to set various cropping modes during bending. The need to reduce the flange when bending and gluing the flange is indicated using the flag Flange cutting. When the flag is enabled, this mode will be activated and the gap between the part and the flange on the unfolding will be equal to the specified value, by default 0.05.
|
|

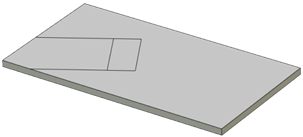

Bending after unbending |
Correct re-bending (with a decrease of the "flange") |
|
|
Removing material to the edge of the workpiece |
Removing material to the length of the "flange" |
The Limit cut to flange length flag allows you to set the method for removing the workpiece material under the flange for gluing the flange: when the flag is set (default state), the material will be removed only by the length of the flange. When the flag is disabled the material will be removed to the edge of the workpiece.
