External Variables of Fitting |

|
External Variables of Fitting |
|
Table of key external variables of fitting smart-fragment.
Variable name |
Usage |
Description |
DiameterIn1 |
Manages input diameter of main direction fitting |
Is necessary for Cap, CornerXxx, Tee, Crossing, Adapter, Clamp |
DiameterOut1 |
Manages output diameter of main direction fitting |
Is necessary for CornerXxx, Tee, Crossing, Adapter |
DiameterIn2 |
Manages input diameter of alternative direction fitting |
Is necessary for Crossing |
DiameterOut2 |
Manages output diameter of alternative direction fitting |
Is necessary for Tee, Crossing |

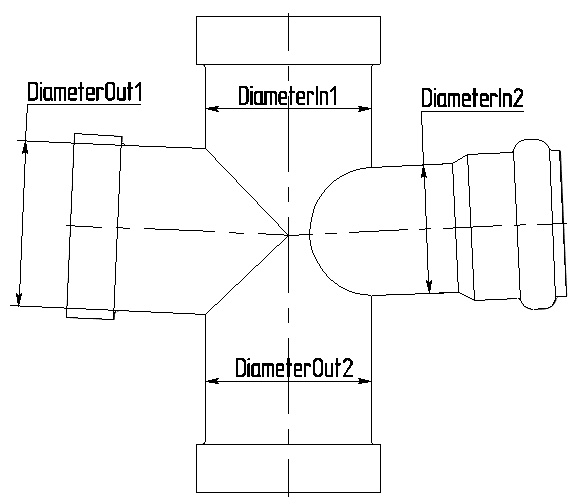

External variable Diameter*** is responsible for link between the respective diameters of fitting and pipe. Due to the variables, macro can get diameter of pipe to which fitting is attached and set the appropriate diameter of fitting.
When creating a smart fragment it is possible to use from one (lug, cross with identical diameters of all branches) to four (cross with four different diameters) external variables, depending on the number of input and output fitting diameters.
