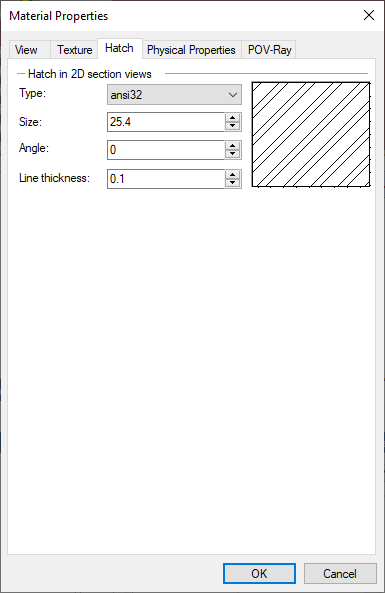

Hatch Properties of Material

When creating sections and cut views in the 2D Projection command there is a capability of automatic hatching of the section. Hatching used in the section is defined with the following parameters:

Type. Hatching type.

Size. Distance between the neighboring hatching lines.

Angle. Angle of rotation of hatching lines. When selecting the hatching, the tilt angle of 0 degrees signifies the hatching with horizontal lines

Line thickness. Parameter allows to specify the thickness of lines.
