Cutting

You can quickly choose between three types of cutting - Cut, Split, Split with Separation.

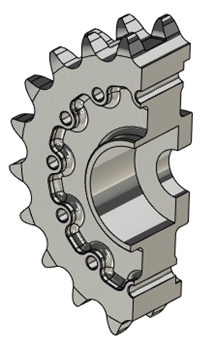

Cut - standard type of cutting used in previous versions of T-FLEX CAD.

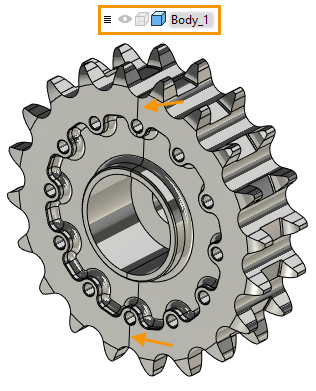

Split - a new type of cutting in which the object is split by the selected type of secant elements, while remaining in the form of single resulting body.

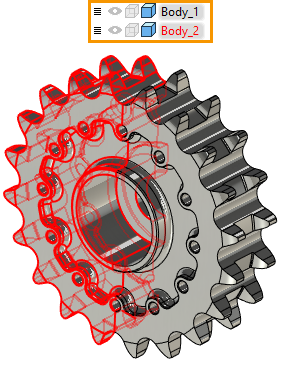

Split with Separation - new type of cutting, in which the object is also split by the selected type of secant elements, but at the same time it is separated into several different bodies.

A similar operation was in the 16th version of T-FLEX CAD, when operation resulted with creation of two cutting operations, independent of each other. Now a new split operation is created and its change will affect all applied bodies.

If you select several cutting surfaces, the result of the operation will be many bodies.

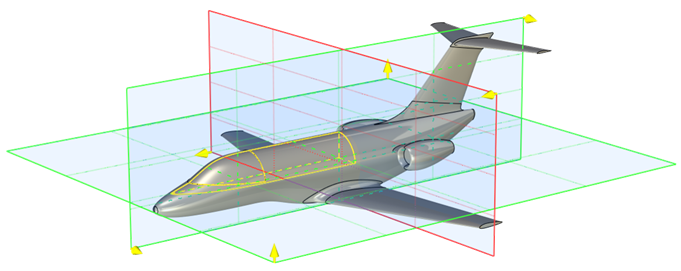

You can now quickly select options for cutting elements in the filter toolbar: 3D Sections, Workplanes, 3D Profiles/3D Paths. By default, all variants of cutting elements are active.

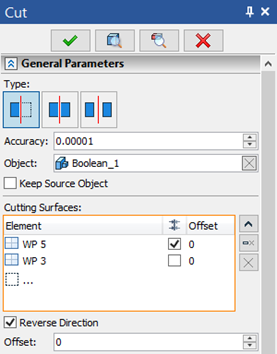

This dialog enables you to specify an offset for each cutting workplane or surface. You can delete or add a cutting element of the selected type.

Added the ability to keep source object.

The Accuracy parameter was added. If the distance between the cutting elements is less than the accuracy, the cutting will be ignored.
