Import of Models and Drawings

Added new formats: Revit, FBX.

Added support for formats of new versions of systems: Inventor, SolidWorks, Solid Edge, Parasolid, JT, Revit, NX, ACIS.

Improved AutoCAD import, added support for the latest versions, and also added the ability to import from AutoCAD and export to AutoCAD gradient fills.

For AutoCAD, STEP, IGES, ACIS, SolidWorks, Autodesk Inventor, NX – Unigraphics, Creo - Pro/E, CATIA, Solid Edge, Rhino, Revit, I-DEAS, VDA-FS, JT, PRC, CGR, U3D, FBX formats added import layers option.

For CATIA, SolidWorks, Creo - Pro/E, I-DEAS, JT, NX – Unigraphics, PRC, Solid Edge, STEP formats added the option to import 3D PMI elements (annotations).

Added the ability to import drawings from KOMPAS.

Improved automatic generation of the Product Composition  when importing assembly models.

In the T-FLEX CAD Extended Import module, the ability to directly read the CATIA V5 format has been added, as well as support for new versions of Creo systems.

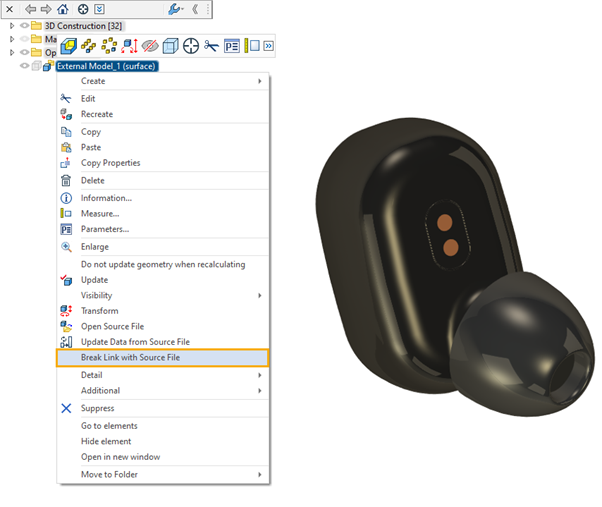

Break Link with Source File

Added the ability to break the link with the source file of the external model. When this option is activated, all parameters associated with the source file will be removed from the operation context menu.
