Insert Tables from Prototype

Предыдущая страницаВ началоСледующая страница

Added the ability to insert tables from a pre-created prototype.

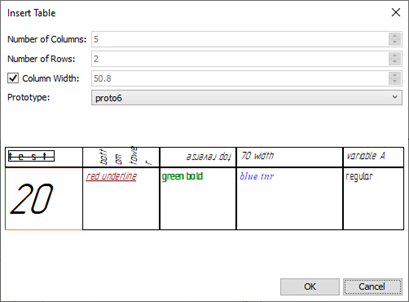

New17233

To create a prototype, you need to perform the following sequence of actions:

Create a document containing a drawing view;

Create table;

Save the document in the table prototypes folder (C: \Program Files\T-FLEX Parametric CAD 17\Program\Template\Tables).

Only one table should be present in the generated document.

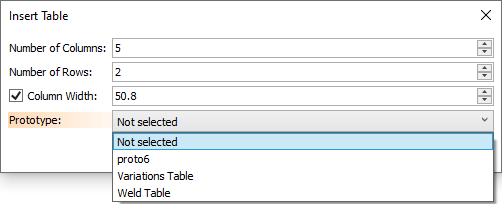

After the performed actions, when inserting a table in any document, the choice of a prototype will be available.

02_TableProtoInsert
