Snapping of Dimensions and Leader Notes

Предыдущая страницаВ началоСледующая страница

The Snap within Projection View checkbox is added to the Options tab of Dimension and Leader Note commands' parameters windows.

02.SnapWithinProjection1

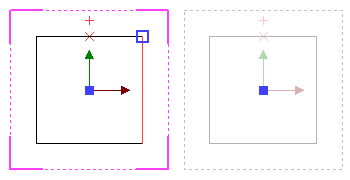

The checkbox is enabled by default, so a drawing view gets activated upon selecting a first reference element.

02S.SnapWithinProjection2

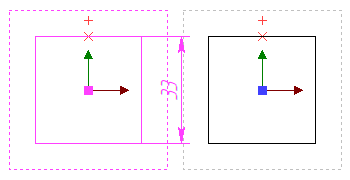

In result, Dimensions and Leader Notes are created within a single projection and selecting reference elements on other projections is impossible.

02S.SnapWithinProjection3

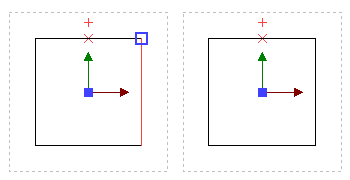

If the checkbox is disabled, then a drawing view doesn't get activated upon selecting a first reference element, so you can select a second reference element on another projection.

02S.SnapWithinProjection4

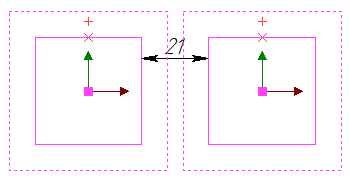

In result, created Dimensions and Leader Notes belong to the whole drawing page, not to a particular projection.

02S.SnapWithinProjection5

This option can be also disabled by holding <Shift> while selecting a first reference element.

Keep in mind, that values of dimensions created without snapping on projections with breaks do not take "broken" part of the model into account.

When dimension values do not represent actual dimensions of a model due to disabled snapping, info messages are displayed in the Diagnostics window:

02.DimensionBreakWarning
