«3D Model» Window Improvement

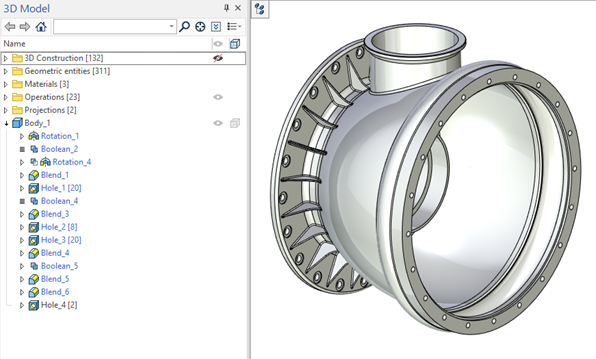

The control panel of the 3D Model window and the model tree has been reworked.

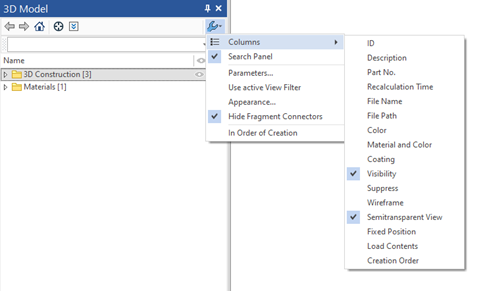

The parameters called by the right mouse button in the 3D model window moved to the parameter window, where the column settings were previously located.

As with all tool windows, in the 3D Model window, the search panel is moved to a separate toolbar. Now it can be hidden by clicking on the corresponding item in the context menu.

Similar changes were made to the search bar in the model tree.

In the case of the model tree, the search bar is now disabled by default.

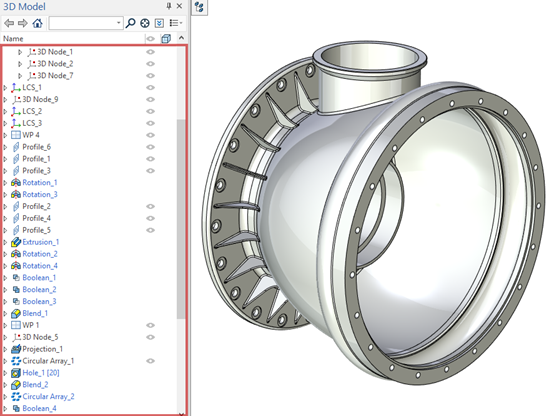

Also added the ability to sort created items in the order they were created.

Fixed Position column was added.

The column ensures quick assigning and control of fixed bodies.

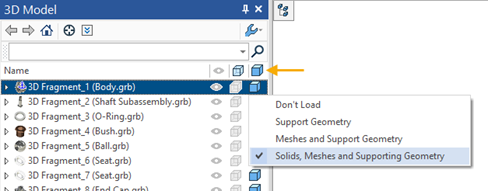

Added Load Contents column.

The column allows you to quickly select content download options for each fragment for performance and memory management.

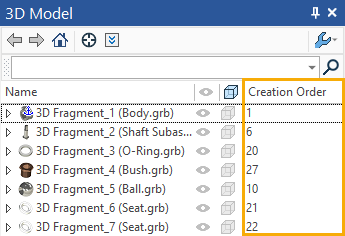

Added Creation Order column.

The column allows you to display the order in which fragments are created in the model.

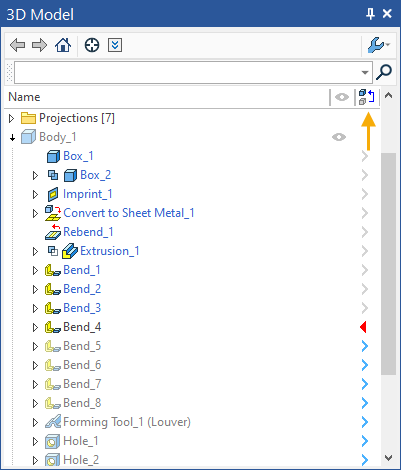

Added Rollback column.

The column allows you to display the operations to which the rollback was performed.

In the new version of T-FLEX CAD, rollback works according to different principles with different modes of the model tree. When the In Order of Creation mode is active, the command rolls back the model according to the creation history, and when the standard mode is active it rolls back operations along the body construction chain.
