T-FLEX Viewer

T-FLEX Viewer has become a convenient tool for quick viewing and monitoring of projects during teamwork.

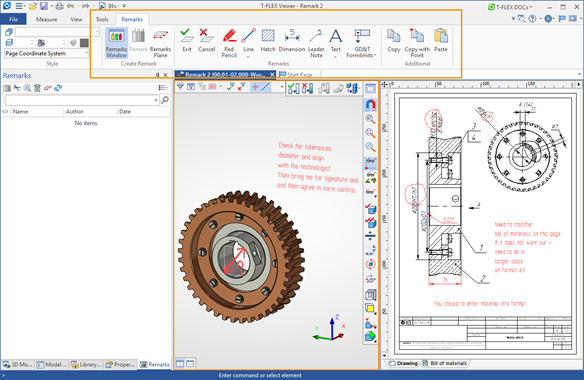

A new remarks mechanism is available, including work in the Remarks window.

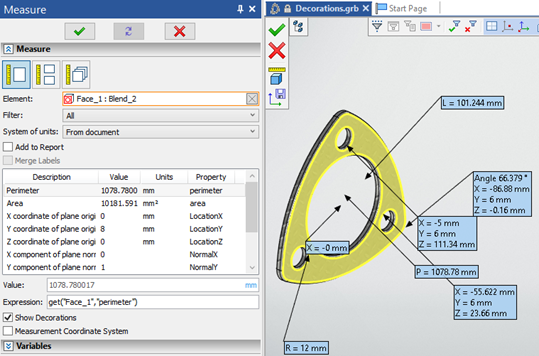

You can measure models using the Measure command and calculate mass-inertial characteristics

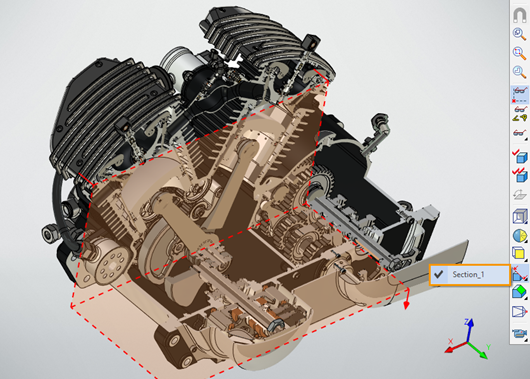

For a detailed view of the models, commands for using 3D sections and clipping planes are available, in addition, visual display options are available, as well as options for models searching in the 3D scene and the 3D Model and Assembly Structure windows.

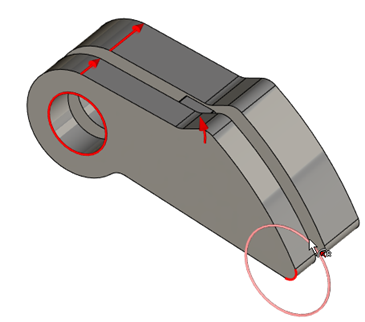

3D models can be edited using manipulators and external variables

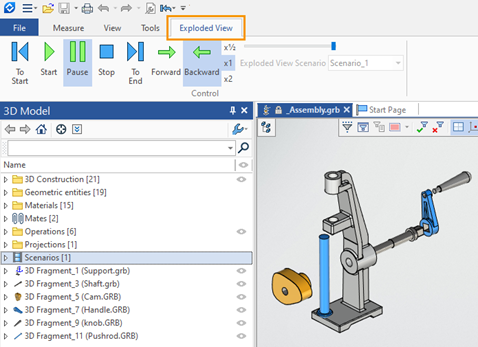

T-FLEX Viewer supports an exploded/unexploded view scenario player, which makes it possible to use 3D models as instructions for the assembler in production.

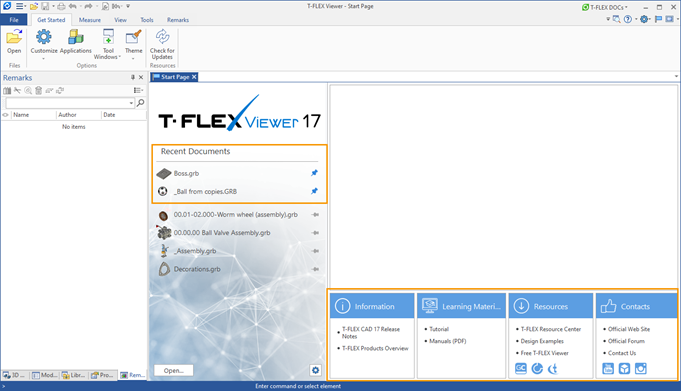

Work in the T-FLEX Viewer now starts with the start page, where, like in T-FLEX CAD, the fixation of important files is available, as well as other new features of the start page described earlier.
