Model Configurations and Variations

Предыдущая страницаВ началоСледующая страница

Configuration saved in the document additional version of the model’s geometry satisfying several given conditions. Geometry of configurations is not shown in the 3D scene of the document.

By default, the T-FLEX CAD document stores only the geometry corresponding to the last saved state of the 3D model of the given document.

The main domain of application of configurations is for design of 3D assemblies. Geometry saved in the configuration can be inserted into the assembly instead of the actual geometry of the fragment. The use of configurations allows the user to rapidly download the required version of the fragment without additional recalculation and transformation of fragment’s model.

Variation is a special configuration type intended to work with the product structures. The variations are used for variant BOMs creation.

T-FLEX CAD document can contain any number of configurations. Each configuration is assigned the unique name.

Depending on conditions defining the saved configuration, configurations can be divided into 2 types:

Configurations by a total collection of bodies – store the geometry of all bodies of 3D model;

Configurations by optional collection of bodies – store the geometry of an optional collection of bodies corresponding to any operations and Bodies from the model’s tree.

If the document contains external variables, in each configuration a collection of values of external variables is also stored, for which the geometry of configuration was calculated.

Configurations can be also created in the 2D documents. In this case, configuration is capable to store only collection of values of document’s external variables. Such configurations can be used while working with 2D fragments for quick specification of values of fragment’s variables.

Using Configurations

When inserting a document with configurations as a 3D fragment, as usual, it is possible to either specify the values of external variables of fragment required in the assembly (if a fragment has them) or specify one of the configurations saved in the document.

When specifying the values of variables, the system has to recalculate the entire model of the fragment according to the values specified in the assembly. The geometry obtained as a result of recalculation is put into the assembly.

When using configuration (created in the document of a fragment in advance), recalculation of the fragment’s model is not carried out, - the geometry stored in the configuration is inserted right away. Geometry inserted into the assembly contains only the bodies which were saved in the configuration.

Since there is no recalculation of the fragment’s model upon insertion of configurations, the time spent on assembly construction is significantly reduced. This is especially evident when inserting the fragments containing quite complicated constructions and the large number of operations. The possibility to control the structure of the geometry saved in the configuration provides even wider capabilities for design of 3D assemblies.

Mechanisms, purpose and operation with the first and second types of configurations are considerably different, thus, a separate description of each is required.

Configurations by a total collection of bodies

When creating configuration by a total collection of bodies the user specifies only the values of those external variables of the document to which geometry of the configuration has to correspond. Geometry of all final bodies of the 3D model is saved in the configuration.

The use of configurations of this type for 3D fragments allows the user to avoid the recalculation of fragment’s model in the assembly. To take advantage of this capability, upon the fragment’s insertion, instead of entering the values of the variables, the user needs to specify one of the configurations of the fragment. Geometry of the indicated configuration will be downloaded into the assembly.

The system can use the geometry from the configuration of the fragment automatically. This happens when for 3D fragment the user specifies the values of the variables coinciding with the set of values for one of the configurations of the fragment. If this coincidence takes place, then instead of recalculation of the fragment’s model, the system downloads the geometry from the corresponding configuration. Note that this rule is valid only for configurations by a total collection of bodies.

Configurations by optional collection of bodies

When creating configuration by an optional collection of bodies, in addition to a collection of values of external variables, any arbitrary set of operations and Bodies from the model’s tree of the document is specified. The geometry that will be stored in the configuration represents a collection of all selected operations/bodies. When using the current document as a fragment, such configuration will be inserted as a multi-body fragment.

Multi-Body fragments can be automatically divided into several separate bodies, if, in the properties of the fragment in the assembly, the parameter Use As (Operation tab) is assigned the value Separate Solids.

Insertion of configuration by an optional collection of bodies into the assembly can be carried out only by explicit specification of the name of the required configuration in the fragment’s properties.

Configurations by an optional collection of bodies can be used in cases requiring different representation of the model’s geometry in the fragment and in the assembly. For example, inside the assembly they allow displaying the bodies corresponding to the operations in the middle of the model’s tree of the fragment. Example – the parts with completed finishing of welded joints. Finishing of welded joints requires creation of a large number of additional operations complicating the model and increasing the recalculation time. In the 3D model of the part itself, the finishing of welded joints is necessary, but in the assembly it is often unnecessary and significantly burdens the assembly model. In such situation in the fragment it is possible to create configuration containing the part’s geometry without finishing of welded joints. The list of bodies stored in this configuration will consist from one operation which precedes the operations simulating the finishing of welded joints. If, upon the insertion of the fragment into the assembly, the user selects this configuration, the part will be displayed in the assembly without finishing of welded joints.

Configurations can be also used for fragments whose structure must be modified from one assembly to another. For example, assume that the fragment’s model contains a collection of bodies, but it is required to include only some of them into different assemblies, and, moreover, in different combinations. In this situation, in the fragment’s document the user can create several configurations with different collection of stored operations, and download them into the assemblies as needed.

As another example of the use of configurations consider the following: often, in the assembly the user needs to create a hole adjusted for a non-standard part, and then insert, as a fragment, the part itself. To do that, in the document of the fragment-part the user can create configuration storing a simplified state of the model (operation from the middle of the model’s tree) and a final view of the part (operation from the top of the tree or a Body). When inserting such configuration into the assembly with the use of fragments’ partitioning into the bodies one of the inserted Bodies can be used for creating a hole (with the help of Boolean operation of subtraction), another Body – for obtaining the fragment-part itself.

Creating and Editing Configurations

For creating and editing configurations the Model Configurations command is used:

Icon

Ribbon

ModelConfig

Get Started > Options > Tool Windows > Model Configurations

Parameters > Tools > Model Configurations

View > Window > Tool Windows > Model Configurations

SettingsIcon > Tool Windows > Model Configurations

Keyboard

Textual Menu

<Shift>+<F4>

Customize > Tool Windows > Model Configurations

This command can be unavailable if the current document was not saved.

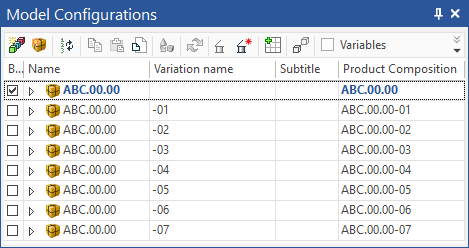

Calling the command brings up the service window for managing configurations of the current model:

ModelConfiguration1

The left half of the window displays a list of existing configurations and variations for the current model. In order to start working with any configuration, you need to select it in this list. If there are no configurations in the document yet, the list will be empty.

Option ModelCinfiguration2 Create configuration is used to create a new configuration.

Option ModelCinfiguration3 Create variation is used to create a new variation.

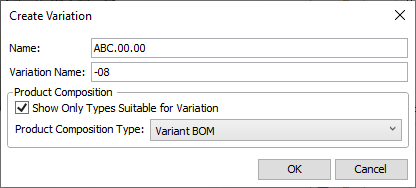

A new name may be assigned for the new configuration or variation.

You can specify a Product Composition type for the new variation.

When the Show Only Types Suitable for Variation option is disabled, all types of product composition will be available, however, it is recommended to leave the option enabled, then the list will display a type suitable for variation - Variant BOM.

ModelConfiguration4

If the field Part No. is filled, it will be set as configuration/variation name by default. If it is empty, the current document name will be used.

The product composition will be automatically created after the variation saving. Its name matches the source name.

For already created configurations/variations, you can change the name and, if necessary, specify the subtitle by editing the corresponding cell in the table.

The set of variable values that corresponds to the current state of the model is assigned for a new configuration/variation, by default.

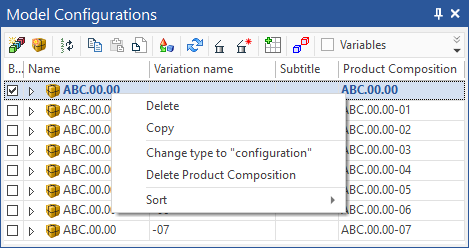

There are following options in the context menu:

Delete allows delete configuration or variation.

Copy allows copy configuration or variation.

Change type to “configuration”/”variation” allows to switch type of currently selected element.

Sort allows to activate sorting by Name column or In order of Creation Ascending/Descending.

ModelConfiguration5

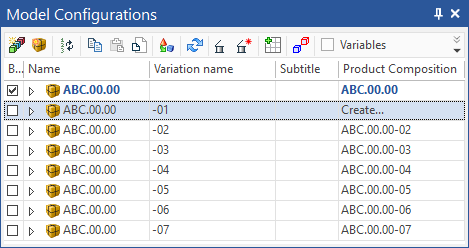

Delete Product Composition deletes product composition for the currently selected element. You can reassign the product composition in the Product Composition window by clicking Create…

ModelConfiguration7

ModelConfiguration6

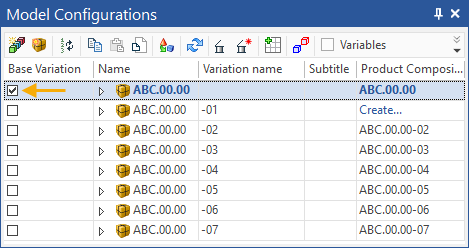

Base Variation. The flag to the left from the name is used for the base variation selection. The properties of product composition corresponding to the base variation are used for data display in the Product Composition window in the Apply product composition representation mode. If a product has variations, it is mandatory to have a base one, so the first created variation gets automatically selected as base by default.

ModelConfiguration8

For selected configuration, the list of external variables values is shown in the table Variables in the upper right pane of the command’s window.

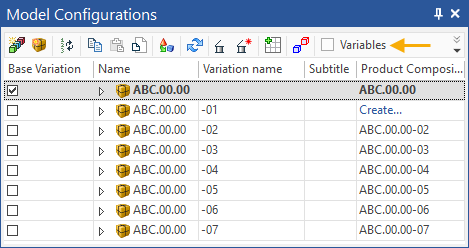

ModelConfiguration9

The values of variables can be modified in the table.

You need to save changes using the Load option to make them actual. Some external variables can be deleted, and some can be created when you edit the model.

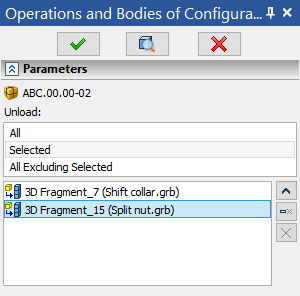

Select Operations and Bodies ModelCinfiguration30 command allows to specify operations and bodies to be saved in the selected configuration.

ModelConfiguration10

Following options are available in the Unload box of the command's parameters window:

All
The configuration will contain all operations and bodies present in the model.

Selected
The configuration will contain operations and bodies specified in the list below.

All Excluding Selected
The configuration will contain all operations and bodies, except those specified in the list below.

The list of operations and bodies to be used for creating a configuration by optional collection of bodies in case of selecting one of the last two options. In order to add an operation or body into the list, move the cursor over them and press mouse left. You use the filter toolbar to add either Operations, Bodies or both. The list can be managed using Expand Expand, Collapse Collapse, DeleteElementFromTheList Delete Element from the List and Clear Clear buttons located to the right.

Configuration1

Configuration2

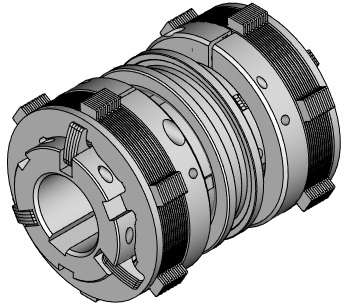

Configuration by a total collection of bodies

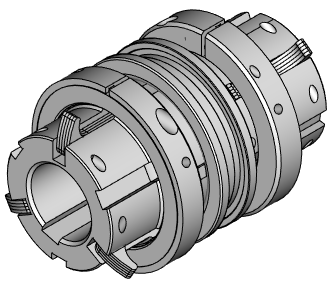

Configuration by an optional collection of bodies

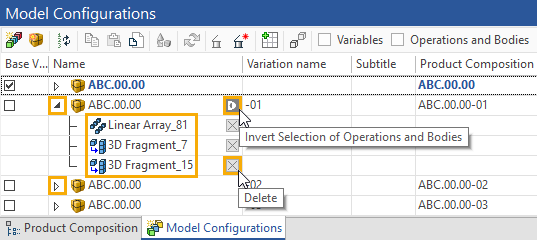

The list of operations and bodies used for creating a configuration can also be ExpandTree10x15 expanded or CollapseTree10x15 collapsed  directly in the SWModelConfigs20x20 Model Configurations window by pressing buttons to the left of the configuration name. Button to the right of the name allows to Invert Selection of Operations and Bodies, i.e. to switch between the Selected13x13 Selected and AllExcludingSelected13x13 All Excluding Selected options described above. The icon of the button depends on the active option. Buttons located below allow to Delete13x13 Delete a particular body/operation from the list.

24_InvertBodies

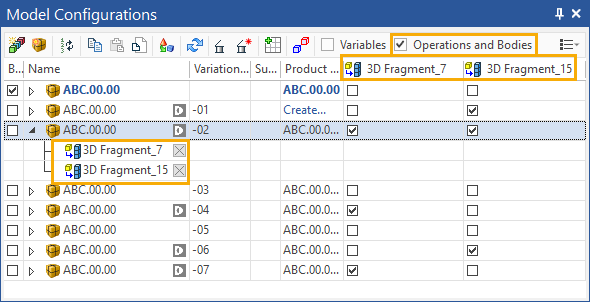

Using the Operations and Bodies option, you can display the items selected in the Select Bodies and Operations option in separate columns.

ModelConfiguration103

To work with configurations/variations, the following options are also used:

ModelCinfiguration29 Update Configuration and Variation Names by Document Part Number - allows to update the names of all configurations and variations according to the specified document part number.

ModelCinfiguration14 ModelCinfiguration15 Copy/Paste - allows to copy or create a new configuration/variation based on the existing one. You need to specify name for the new configuration. The variables values and the product composition type are copied from the source object.

ModelCinfiguration28 Import Configurations and Variations from Clipboard - allows to import data copied to the clipboard from a spreadsheet editor (MS Excel, LibreOffice Calc, etc.). The first line of copied cells is treated as names of columns, and all subsequent ones are values ​​of configuration or variation variables. In the example below, we have copied the 3x4 selection of cells:

ModelCinfiguration104

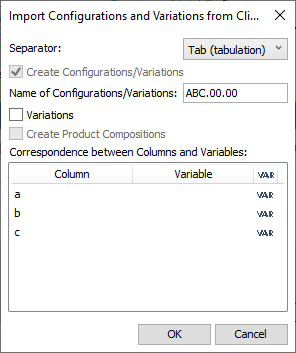

After copying the table to the clipboard and clicking the ModelCinfiguration28 option, the import window will appear.

ModelConfiguration105

Using the separator, you can select the view of the copied table.

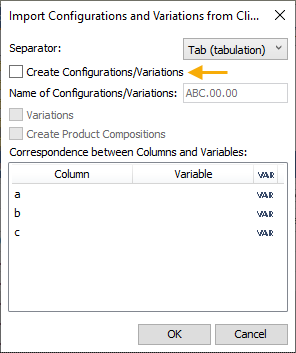

Configurations are created by default. To create variations, you must use the Variations option. When this option is active, it becomes possible to create product compositions.

If the number of lines with variable values ​​coincides with the number of selected configurations, then you can not create configurations, but substitute the values ​​of variables in the selected ones. Then the option Create Configurations/Variations will be inactive:

ModelConfiguration106

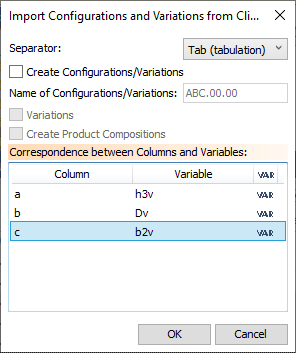

After that, you need to set the match between the columns and variables. To do this, click on the VAR icon in the correspondence table. A window for selecting a variable will appear and after matching columns with variables, the result will be as follows:

ModelConfiguration107

ModelCinfiguration18 Load - regenerates model with a variable values defined in the selected configuration. This command allows viewing geometry of each configuration.

ModelCinfiguration19 Update - assigns current values to the external model variables in the current configuration/variation.

ModelCinfiguration20 Delete - deletes the selected configuration/variation.

ModelCinfiguration21 Delete all - deletes all configurations/variations.

ModelCinfiguration22 Create new variations table – creates variations table of the model.
