Conic – Tangent |

|
Conic – Tangent |
|
To create a Conic – Tangent surface do the following:
1.Select Support Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.
2.Select First Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The first guide must entirely belong to the first face.
3.Select First Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.
4.Select Second Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The second guide must entirely belong to the second face.
5.Select Second Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.
6.Select First Reference Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.
7.Select Second Reference Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.
8.Change or leave the default values for the parameters determining design accuracy.
9.Confirm the surface creation.
|

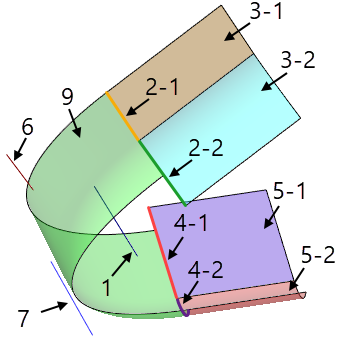

1. Support curve 2-1. First edge from the set of smoothly conjugated edges of the first guide 2-2. Second edge from the set of smoothly conjugated edges of the first guide 3-1. First part of the set of smoothly conjugate faces of the first face 3-2. Second part of the set of smoothly conjugate faces of the first face 4-1. First edge from the set of smoothly conjugated edges of the second guide 4-2. Second edge from the set of smoothly conjugated edges of the second guide 5-1. First part of the set of smoothly conjugate faces of the second face 5-2. Second part of the set of smoothly conjugate faces of the second face 6. First reference curve 7. Second reference curve 9. Resulting surface |
