Conic - Four Points

Conic - 4 Points. It creates a conical section surface that smoothly touches a given surface along the specified guide curve (First Guide), while the shape of the surface is determined by three other guide curves.

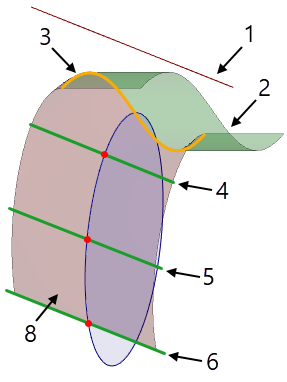

To create a Conic – 4 Points surface do the following:

1.Select Support Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.

2.Select First Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.

3.Select First Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The first guide must entirely belong to the first face.

4.Select Second Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The second guide must entirely belong to the first face.

5.Select Third Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The second guide must entirely belong to the first face.

6.Select Fourth Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges. The second guide must entirely belong to the first face.

7.Change or leave the default values for the parameters determining design accuracy.

8.Confirm the surface creation.
