Extend Faces

Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

ExtendFaces

3D Model > Special > Surfaces > Extend Faces

Surfaces > Operations > Extend Faces

Keyboard

Textual Menu

<3SX>

Operation > Surfaces > Extend Faces

This command allows extending a selected face (or several faces belonging to a surface body) in the specified direction, for the specified length amount. The direction of extending the face is defined by selecting the side edges of the faces being extended. 3D profiles can be extended as well. In this way, an enlarged face will be created as a result of executing the command, identical in shape with the underlying surface of the 3D profile.

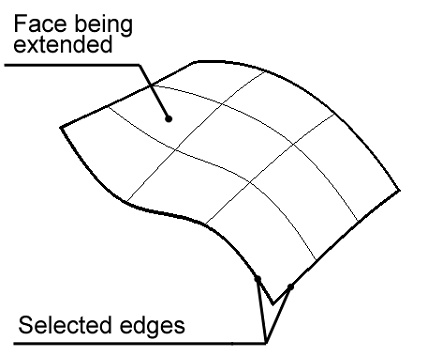

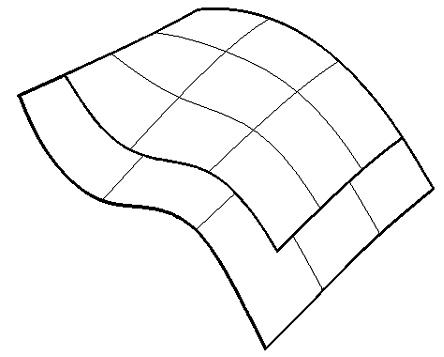

clip7058        clip7059

Sometimes, self-intersections occur when extending a face. In such cases, the command execution ends up in an error message.

To use the command, do the following sequence of steps:

1. Select the object to extend.

2. Select edges.

3. Specify extension amount.

4. Define advanced parameters (optional).

5. Confirm operation creation.

Selecting object to extend

To select an object to extend, use the option:

SelectContourExtend

<R>

Select Surface

...or corresponding filters in the filter toolbar.

When specifying an object to extend, you can select faces, 3D profiles and surface bodies.

Selecting edges

Once the object to extend is selected, you can select one or several edges bounding this object. Those edges will indicate the direction of extending the given object. To select edges, use the option:

SelectEdgeExtend

<H>

Select Edge

The default option for selecting edges is:

ModeSequenceEdges

<S>

Smooth edge chain selection mode

To select individual edges, turn off this option.

To select all edges surrounding the selected object, at once, you can use the option:

SelectAllEdgesExtend

<A>

Select all edges

To cancel selection of any of the edges, click it again.

Defining amount of face extension

The Distance parameter means the distance from the selected edge to the new edge bounding the extended surface, as measured along the surface.

clip0105

Enter the amount of face extension in the Distance input box of the parameters window.

s1282

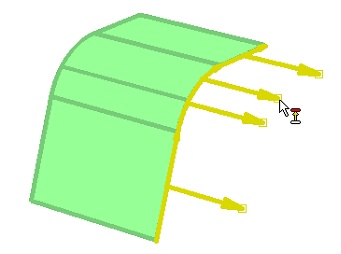

Besides the parameters window, this value can be modified in the 3D window, using arrow-shaped manipulators. The manipulators appear after selecting at least one edge. To "grab" a manipulator, move the cursor to the tip of the arrow (the cursor will then change its appearance to Mouse_FirstDirection) and depress the left mouse button.  Note that the same extension amount is applied in all specified directions.

Defining the advanced parameters

The parameter Modify source surface tells the system, whether to modify the original face topology, or leave it as is. The effect of this parameter on the result is shown below.

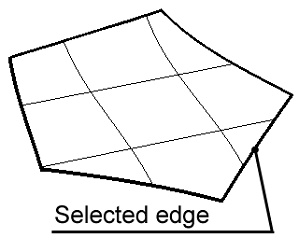

clip7068

    Original model

clip7069

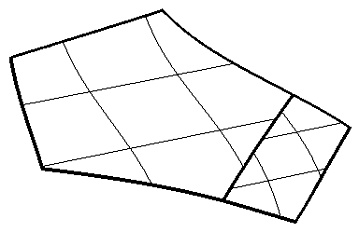

"Modify source surface" parameter is off

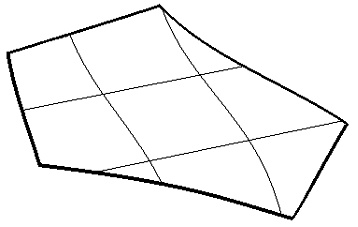

clip7070

"Modify source surface" is on

The parameter Keep source solid specifies, whether to leave the source body in the 3D scene (the whole body altogether, rather than just the selected face). If this parameter is off, the source body disappears upon the operation completion. The parameter Shape defines the shape of the new face created as a result of executing the command. This parameter can take several values.

s1283

Linear means, the face extends straight, staying tangent to the original face at each point of the selected edge. In this way, the surface curvature has a jerk near the selected edge. With the parameter value set to Of Source Surface, most of the newly created surface is linear (ruled), as in the previous case. However, the surface curvature around the selected edge changes smoothly.

clip7072   Original model

clip7073     "Linear" Shape

    clip7074

"Of Source Surface" Shape

      clip7075

"Like Source Surface" Shape

In real life, the angular difference between the new surface with the Linear parameter and that with the parameter Of Source Surface is about 3 degrees. Therefore, the difference between the two results is practically vanishing.

The parameter Like Source Surface means the new surface will rely on the definition of the source surface. The example below shows the effect of this parameter on a spline surface.

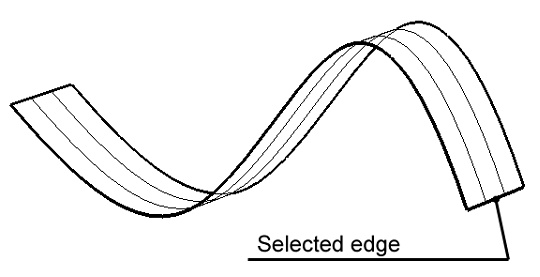

clip7076





                Original model

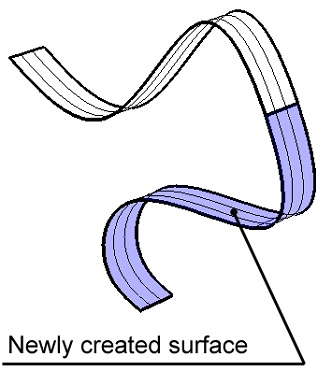

clip7077

  Resulting model

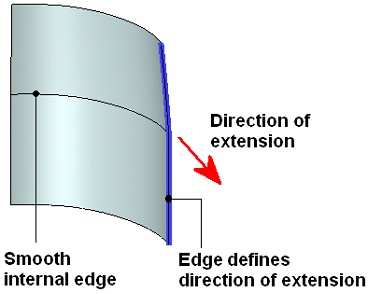

Original faces may contain internal smooth edges. Internal edge is considered to be “smooth” when converging faces that form this edge are tangent to each other at the point of intersection of the edge with another edge that defines direction of surface extension. The “smooth” state of internal edges may be affected in the process of surface extension. To avoid this set G1 mode for Smoothness option (G1 - is geometric continuity by first derivative). This option will recommend system to retain tangent continuity, keeping “smooth” state of the internal edge on surface extension. By default Smoothness option is set as GO (recommendation to ensure only surface continuity).

clip7812 s1284

Topics in this section:

Edit Faces Extension
