Holes Through Multiple Bodies

Holes can be cut through several solid bodies at once. Such sets of holes create multi-body operations.

To use each model body separately in the future, use Divide operation after creating the holes.

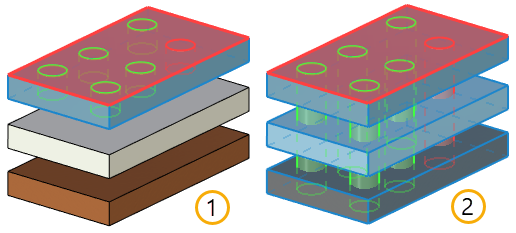

1. A set of holes created through one body

2. A set of holes through multiple bodies

Creating holes through multiple bodies at same time

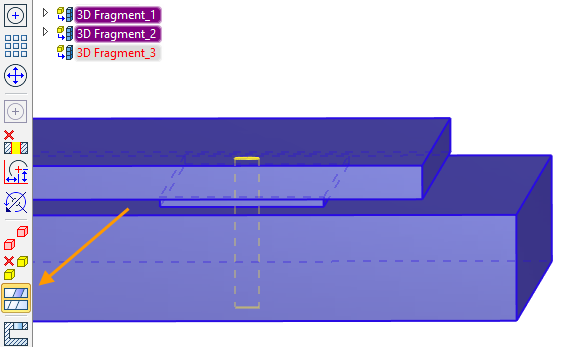

You can select additional bodies using the option:

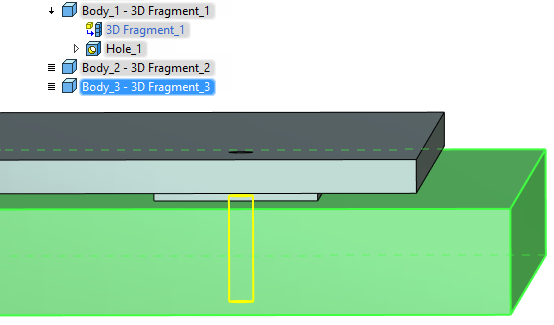

Bodies can be selected both in the model tree and directly in the 3D scene.

It is not recommended to select the parent operation of the already selected body as an additional body in the model tree, because in this case a copy of this operation will be created.

The option allows you to cancel the selection of bodies:

You can create coaxial holes in several bodies or fragments and such holes will not be united in one resulting body. Use the Create coaxial holes option for this purpose.





A separate hole will be created for each of the bodies.

Parameterization is supported at the level of general variables. That is, if you set the hole sizes through variables, then these variables will be saved for each of the holes.
