Modify Hole Position and Orientation

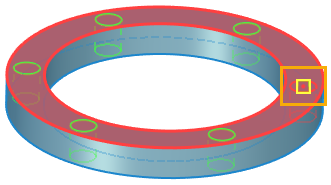

Attachment points and orientation can be modified separately for each hole in a set being created. The hole currently available for editing is highlighted in the 3D scene. The default highlighting color is red. Other holes in the set are highlighted green.

Normally, the last created hole is instantly made available for editing. A different hole in the set can be selected by the option:

Upon activating this option, simply point the mouse at one of the created holes and click . The selected hole will be highlighted.

The selected hole can be deleted by the option:

Modifying hole attachment point

To define a new attachment point from scratch, use the option:

After calling this option, you must specify a new anchor point for the hole being edited.

You can change the position of the hole on the current bearing face in the options.

You can change the parameters of an existing hole by selecting it in the model tree and calling the Variables command from the context menu.

In the operation parameters dialog called by the option , you can set general operation parameters.

A special command is used to edit the created operation.

3D Fragment Supplement

The option automatically becomes available in the command's automenu when selecting elements on a fragment in an assembly.
