Line – Angle

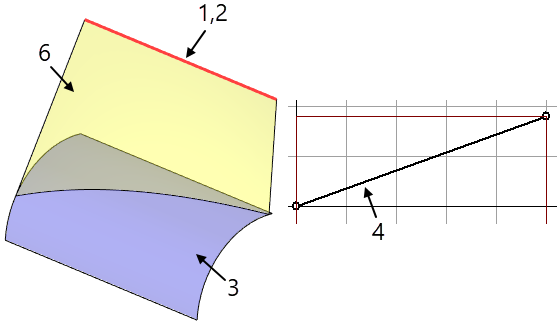

To create a Line – Angle surface do the following:

1.Select Support Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.

2.Select First Guide. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.

3.Select End Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.

4.Set Angle. The range for angle value is from 0° to 180°. The value can be constant or variable, set by the diagram. In case you use the diagram, the range is also from 0° to 180°. Switching the diagram from the negative to the positive area or vice versa is available. If the value equals 0° or 180°, the surface is built tangent. The abscissa axis of the diagram is the supporting curve length.

5.Change or leave the default values for the parameters determining design accuracy.

6.Confirm the surface creation.
