To create a Line – Tangent surface do the following:

1) Select Support Curve. It can be a path, a route, an open profile, an edge or a sequence of smoothly-joint edges.

2) Select First Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.

3) Select Second Face. It can be set by a face, a surface or a sequence of smoothly-joint faces.

4) Change or leave the default values for the parameters determining design accuracy.

5) Confirm the surface creation.

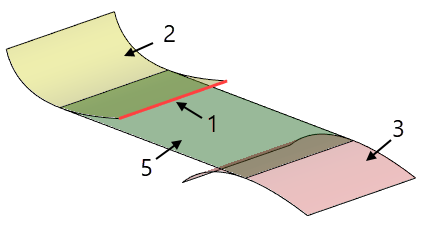

15TransitionSurface4S

1. Support curve

2. First face

3. Second face

5. Resulting surface
