Remarks Window

Calling the command:

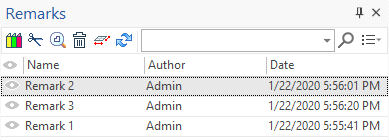

You can use the special Remarks window in order to create, delete, edit remarks.

A set of icons at the top of the window enables you to manage comments.

       New Remark

       Edit

       Show

       Delete

       Create Remark Plane

       Update

The window enables you to search for and configure the displayed columns.

Visibility. The first column of the window is always available. Click the icon to determine the visibility of the remark in a 3D scene or drawing.

Name. Name of comment.

Autor. Author of comment.

Date. Date of comment creation.

Text. A remark object is a graphical object, so it is sometimes convenient to explain it with text.

File. Specifies the location and name of the file containing the remark. From the point of view of CAD system objects, a remark is an object created in a context. By default, the remark file is saved to the folder where the file to which the comments were created is located.

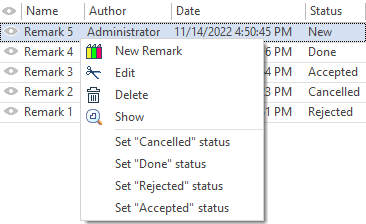

Status. Status of a remark in T-FLEX DOCs (New/Rejected/Accepted/Done/Cancelled). If a remark is created without DOCs integration, then the status is not set. Within the DOCs integration mode you can set statuses of remarks, using the contextual menu in the Remarks tool window of the T-FLEX CAD.
