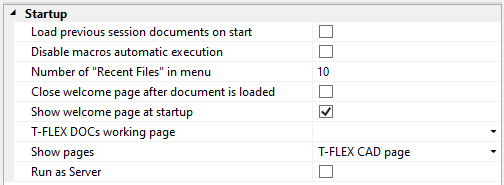

System Options > Startup

Load previous session document on start

If this flag is set, then upon the next start of T-FLEX CAD the documents will be automatically loaded that were open at the time of closing the previous system session.

Disable macros automatic execution

Allows to disable automatic macros execution, appointed to document events (opening, closing, saving and so on). This mode can be useful when user is debugging macros.

Number of “Recent Files” in menu

Defines the number of items in the list of files opened in recent sessions. The number should not be greater than 16. This setting affects the menu File > Recent Files and the Start Page.

Close welcome page after document is loaded

If this checkbox is enabled, then the Start Page will be closed automatically, upon opening any document.

Show welcome page at startup

Defines whether to launch the Start Page on the application startup.

T-FLEX DOCs working page

In the drop-down list of this parameter you can select any of the working pages available in the T-FLEX DOCs client, which the current T-FLEX CAD session is integrated with. Selected page may be opened in CAD automatically, upon startup, depending on the next parameter.

Show pages

Depending on this parameters, either a T-FLEX CAD Start Page, a T-FLEX DOCs working page (see the previous parameter), or both pages will be displayed, upon launching T-FLEX CAD.

Run as Server

The parameter is required for applications that use special Server API to work in a separate process.
