Navigation:  Drawing Creation > Drawing Title Block



The drawing title block module is an application that can be launched from the command Customize > |Applications. This application starts by default, as indicated by the availability of the "Title Block" textual menu item. The drawing title block commands are also available in the group “Title block” of the main toolbar.

The toolbar can be opened from the command "SB: Show Toolbars" or selected from the list of toolbars in the context menu accessed by right-clicking upon pointing the cursor at one of toolbars.



Creating Title Block

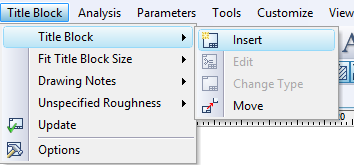

To create a title block, use the command "Insert Title Block":

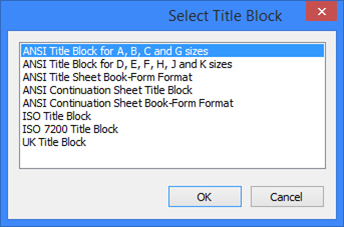

After calling this command, a dialog window appears on the screen, which lists all types of title blocks provided with the system. You can manually add to this list the title blocks of your own design (see the section "Customize").

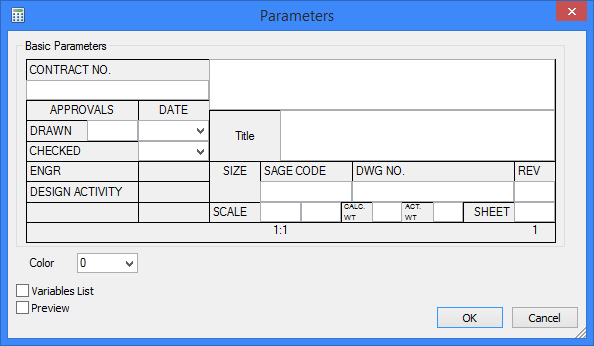

Select the title block type from the provided list, which you intend to apply to the drawing. After that, a window will appear for filling the title block. This window is a standard window for editing values of fragment external variables and will display by default the dialog created in the title block document using the interface control elements. Upon enabling the "Variables List", flag this window is displayed as the external variables editor.



Any field that has the graphic button next to it can be filled using the list of values. You will be able to create and/or modify the list of values using the context menu commands.

When applying the title block, its fields "Drawing Number" and "Title" are automatically bound to the hidden variables of the current document. The same variables define the data for the BOM. Therefore, when inputting data in these fields of the format frame, the corresponding data is automatically entered in the BOM.

Additional parameter "Color" sets the color of the title block lines and text.

To edit the contents of the title block fields, use the command "Edit Title Block":



You can reassign the title block type with the command "Change Title Block Type":

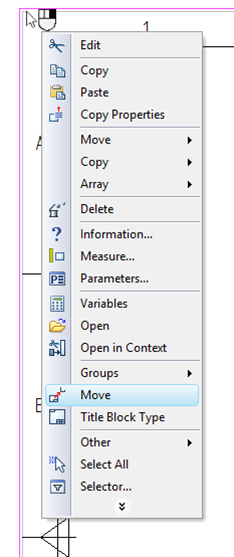

To modify the format frame position, use the command "Move Title Block":



When editing the title block using the dialog for editing fragment external variables, you have another alternative. If you enable the "Variables List" flag in this dialog, then, instead of a dialog with interface control elements you'll see the standard list of the format frame fragment external variables. Find the "$Drawing_Number" and "$TITLE" variables in it (the fields "Drawing number" and "Title"), and replace their values with constants.

In some cases, you may need to suppress automatic binding of title blocks variables with the variables of the current drawing. This may be needed, for example, when frequently creating documents containing several different drawings. In such a case, it is more convenient to edit the title blocks document itself, to have the automatic variable bindings suppressed on inserting it into the current document. To do this, open the format frame document, go into the variables editor and delete the contents of the "Assembly Variable Name" parameter from the above-listed variables.



Title Block Fitting

The commands below serve to define the size of the format of the drawing, and therefore the title block.

The command picks the format of the closest standard size.

In this case, the format size is determined by the drawing dimensions in the 2D window.



If this command is selected, then the format size will be determined by the dimensions of the current 2D window.

In the latter two cases, the automatically calculated format height and width will be entered in the drawing status (the command "ST: Set Document Parameters"). The format itself will be assigned the "Custom" value.



Drawing Notes

You can enter the mode of creating drawing notes with the command "Insert Drawing Notes":



Upon calling this command, a pane is displayed on the screen, in which you can enter the drawing notes. The drawing notes are a paragraph text by default, therefore the automenu provides the same options as those available when working with paragraph text (see the chapter "Text"). It is possible to insert fragments of frequently used text from dictionary, and also use variables and their respective values (the option <F8> – Insert Variable tab). Note that if the "Transparent Text Editing" option is set (the "ST: Set Document Parameters" command, the "View" tab), then you can edit text and variable values by pointing the cursor to the text pane and clicking .



The "Edit Drawing Notes" command serves to edit the contents of the drawing notes.

Drawing notes location on a page, its format and initial contents are defined by the special hidden “Text” created preliminary in the title block. This Text is named “DrawingNotes” and created the way that its position and size are dependent on the position and size of the title block.



Technical requirements for the document can also be specified without initial reference to a specific drawing. For example, they can be created in the document that contains only a 3D model, and then they can be used on the drawing. Such technical requirements constitute a formatted numbered text which is related to the entire document.  For example, it can be specified in the prototype.

For specifying/editing technical requirements of the document the special command is used:

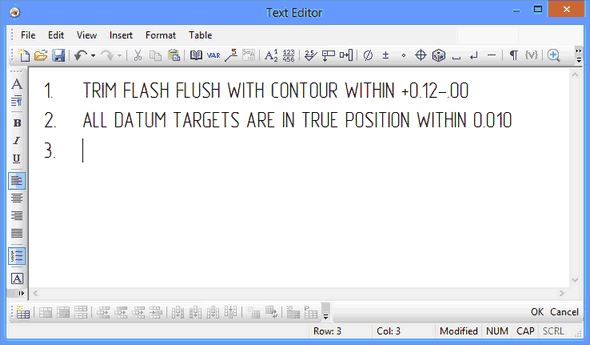

When invoking this command, the text editor window similar to the one used for creation of multi-line and paragraph texts is displayed on the screen.

The list of technical requirements specified in this editor is stored inside the document as a multi-line text. If we invoke the “Create technical requirements” command later on, this text will automatically be inserted into the text of technical requirements of this command. Extra lines which are not needed for the given page can be deleted by the user manually.

Technical requirements created with the help of the command “Title Block > Drawing Notes > Technical Requirements…” can also be inserted into the standard text (see the “Texts” chapter).



Unset Roughness Symbol





After calling this command, the roughness parameters window will appear (see the chapter "Roughness Symbols"). Once the parameters are defined, the roughness symbol will appear on the drawing.



This command serves to edit roughness properties.

Position of the unspecified roughness symbol is defined by the special hidden “Roughness” element created inside the title block document.



Variations Table

You need to create variations of detail/assembly to fill in a variation table. Variations are created in the FCE: Model configurations and variations command.

More information about the command can be found in “Auxiliary tools for 3D assemblies modeling” chapter.

Use the following command to create a variation table:

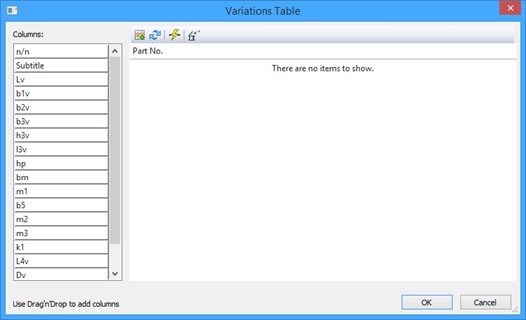

Variations table window appears after calling the command. Model external variables, subtitles and a row of string sequence number that may be used as columns are located in the left part of the window. For this purpose you need to select variable and move it to the right part of the window using Drag’n’Drop.

The variation table window is located to the right. It contains columns that will be used in variation table on the drawing.

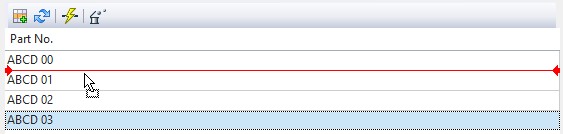

You can change the order of columns. Move column header for this purpose. Two red arrows show where your column will be located. The column, moved from the left side of the window using Drag’n’Drop, can be arranged in the same way.

You can change strings sequence. You need to select string and move it to a new position.

Options for the variations table are located on the toolbar in the upper part of the window.

Insert row. The option adds empty string to the end of the list.

Update sequence number. The option updates sequence numbers in the “n/n” column. The option is used when strings are moved and sequence is broken.

Reset. The option cancels all changes and returns table to the original state.

Delete row. Deletes selected string from the list.

The table appears on the drawing after pressing [OK] button. You can move it using marker in the upper left corner.

Further, you can manage the created table as a text document.

Use the following command to run a variation table editor:



More information about working with text can be found in “Text” chapter.

You can add a new column or make any other changes in the table using command:

After using the command, the Variation table window appears.

All changes in the variation table existing on the drawing will be discarded after pressing [OK] button, and table will be updated. It is recommended to insert all changes in the Variation table window.



Updating Title Block

While working on a drawing, you may need to modify some layout parameters, for example, move the title blocks into a new position. In such a case, the position of the applied drawing notes and unset roughness symbol will remain unchanged. To have such elements positioned according to the new title blocks position, there is the command:



When this command is called, a window appears, in which you can mark the layout elements that you need to update (Title Block, Drawing Notes, Unset Roughness Symbol).



Parameters

To set up layout parameters, there is the command:



After calling this command, a dialog window appears on the screen with two tabs.



"Title Blocks" tab

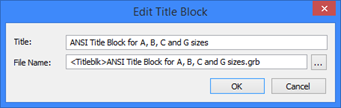

This tab contains the list of title block types used for layouts. You can edit this list using the buttons [Edit], [Add], [Delete]. The first two buttons call the same dialog window, only in the first case it is used for an existing type, and in the second - for a new one.

Title. Specify the title block name in this entry, which will be entered in the list of title block types.

File name. Specify the path to the format frame file in this item entry.

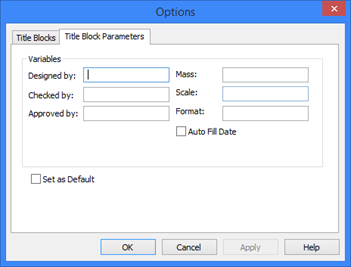

The "Title Block Parameters" tab



Serves to define the parameter values that will be displayed by default when filling in the title block.
