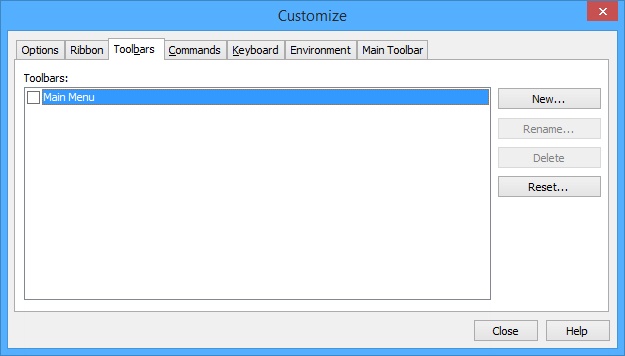

The Toolbars pane lists the standard (available) toolbars used in T-FLEX CAD. A toolbar visibility is controlled by setting or clearing the checkmark in the box before the name of the respective toolbar.

The buttons at the right side of the dialog box are used for creating and editing the user's own toolbars, and also for restoring the settings of the standard toolbars (canceling changes made by the user).

Creating user's toolbar. Defining toolbar name

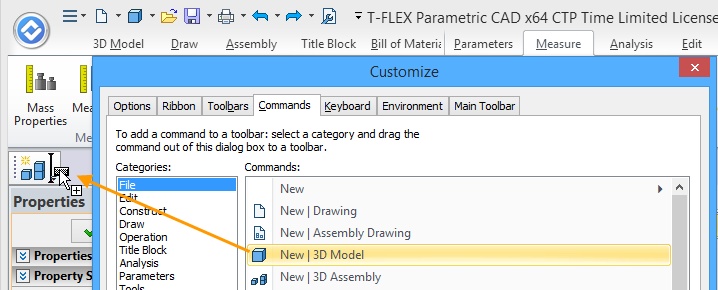

To create a new toolbar, use the button [New]. In the coming up dialog box, define the new toolbar name and press [OK] button. A floating toolbar comes on screen. Then, open the “Commands” tab. Select the desired toolbar name from the “Toolbars” list and the button from the “Buttons” area, and drag the button into the newly created toolbar using .

The name of the user's toolbar can be also modified after creating the toolbar. To do this, it is enough to select a desired toolbar in the list and press the button [Rename…]. This makes the window for assigning the name of the given toolbar appear on the screen again.

Creating new toolbars can be also carried out on the tab “Main toolbar” (see below).

Changing toolbar content

While in the command Show Toolbars with the “Toolbars” or “Commands” tab brought up, one can remove or move icon buttons from visible toolbars to other toolbars by dragging with the cursor, using . Separators can be inserted to and removed from toolbars. This is done by selecting a button and dragging it a bit aside. The same action can be done outside any command, by additionally holding down the <Alt> key.

Any icon button on a visible toolbar can be duplicated by dragging it with the cursor, using while holding down the <Ctrl>+<Alt> combination, to any other toolbar or to an isolate location, thus creating a new floating toolbar.

Deleting toolbar

To delete a toolbar, use the [Remove] button after selecting the intended toolbar in the list. Note that only user-defined toolbars can be deleted. Standard toolbars can’t be deleted.

Restoring content of modified toolbar

To cancel all changes, made in the standard toolbars, the button [Cancel] can be used. Pressing this button restores the initial state of the selected standard toolbar.
