System Options > Folders > Database/Documents/Bill of Materials/Texture/Fonts

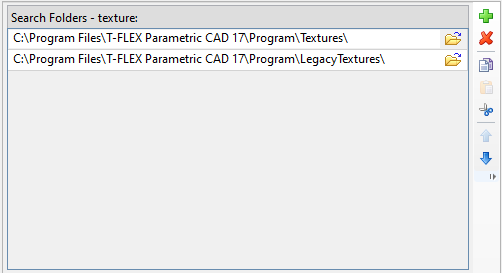

These tabs are used to define a list of additional folders for searching files that could not be found in the standard folders.

The button adds a new string for search folder. The button brings up a browser window for selecting the desired folder on the disk. Select the folder on the tree using the cursor. Upon confirming the selection with the OK button, the browser window closes and the name and path to the selected folder will appear in the selected file type input box.

The button allows deleting a folder selected from the list of defined folders.

The and buttons move the selection frame up and down the list of defined folders.

To work with search folder strings using the clipboard use buttons , , .

Example: suppose we open a drawing file with a fragment assembled in it, while the path to the fragment has changed. In this case, a message will be displayed about an error opening the fragment file. The fragment itself will not be displayed on the drawing. This error can be fixed by either changing the path to the fragment, or using the described tab and defining an additional folder where the fragment file is located. In that case, the system will be automatically searching for the fragment file in the additionally defined folder as well, and the error opening the file will not occur.
