Example of Working with Auxiliary Lines Drawn Manually

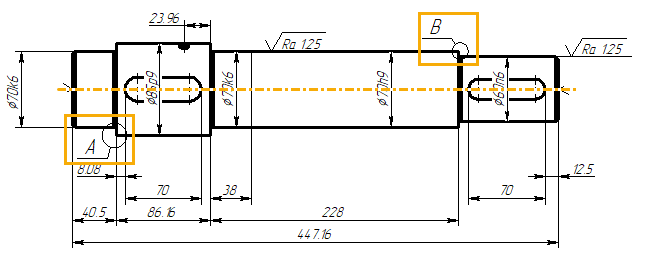

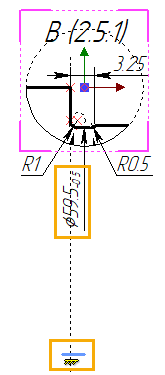

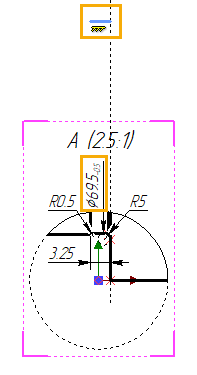

Let's say, we want to display a distance from an axis in a detail view, but the axis is outside the boundaries of the detail view. In such case, we draw the axis in detail view with auxiliary line and use it for creating the dimension.
