Construction Circle Centered at Node, through Node

1. Activate the mode of creating circles centered at node.

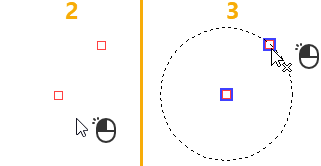

2. Select a 2D node to be used as the center of the circle. A node may be selected in one of the following ways:

•Press or <Enter>, while the cursor is within drawing window, in order to select a node nearest to the cursor.
This method only works, when selecting the first node.

•Move the cursor over the desired node, using object snappings, and press or <Enter>.

•Move the cursor over an intersection of construction lines or a characteristic point of a graphic line, using object snappings, and press or <Enter>. A connected 2D node will be created automatically at the specified point.

•Activate the following automenu option:

If the option is activated via keyboard, then the node nearest to cursor gets selected instantly.
If the option is activated via mouse, then you have to additionally press within drawing window for selecting the nearest node.

3. Select a 2D node for the circle to pass through. A node may be selected in one of the ways described above.

After creating a circle the command returns to the initial state.
