Construction Circle Symmetric to Other Construction Circle

 Предыдущая страницаВ началоСледующая страница

1. Call the Circle20x20 Circle command.

2. Select an axis of symmetry using the following automenu option:

LineAxisSymmetrical

<A>

Select axis of symmetry (straight line)

If the option is activated via keyboard, then the straight construction line nearest to cursor gets selected instantly.
If the option is activated via mouse, then you have to additionally press mouse left within drawing window for selecting the nearest line.

3. Select an existing construction circle for the new circle to be symmetric to. A circle may be selected in one of the following ways:

•Move the cursor over the desired circle, using object snappings, and press mouse left or <Enter>.

•Activate the following automenu option:

LineCircle

<C>

Select Circle

If the option is activated via keyboard, then the construction circle nearest to cursor gets selected instantly.
If the option is activated via mouse, then you have to additionally press mouse left within drawing window for selecting the nearest circle.

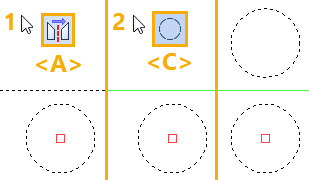

10S_CircleSym

After creating a circle, the command stays in the mode of creating symmetric circles in relation to the same axis.
