Vertical Straight Construction Line through Node

Предыдущая страницаВ началоСледующая страница

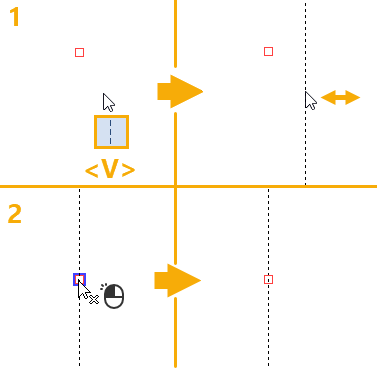

1. Call the VerticalLine20x20 vertical lines creation mode of the Line20x20 Line command. The preview of the resulting line will start following the cursor.

2. Select a 2D node for the line to pass through. A node may be selected in one of the following ways:

Move the cursor over the desired node, using object snappings, and press mouse left or <Enter>.

Move the cursor over an intersection of construction lines or a characteristic point of a graphic line, using object snappings, and press mouse left or <Enter>. A connected 2D node will be created automatically at the specified point.

Activate the following automenu option:

Line3DNode

<N>

Select Node

If the option is activated via keyboard, then the node nearest to cursor gets selected instantly.
If the option is activated via mouse, then you have to additionally press mouse left within drawing window for selecting the nearest node.

10S_LineXNode

After creating a line, the command stays in the VerticalLine20x20 vertical lines creation mode.
