Exclusions for Elements of Drawing View

Предыдущая страницаВ началоСледующая страница

Following Breaks and Clipping Contour options are available in the contextual menu of active drawing view's elements:

Don't draw
This option works in the same way as described for 2D projection elements.

Don't clip
This option works in the same way as described for 2D projection elements.

Don't consider when calculating break lines
This option's usage is described below.

Don't consider when calculating break lines

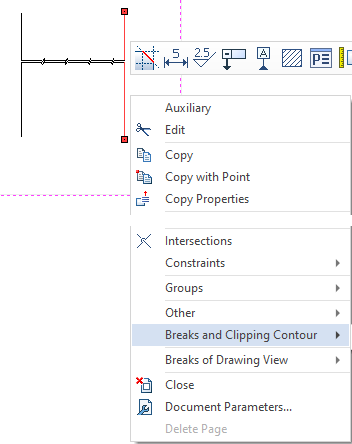

Click mouse right on active drawing view's element:

10_ProjectionConsider

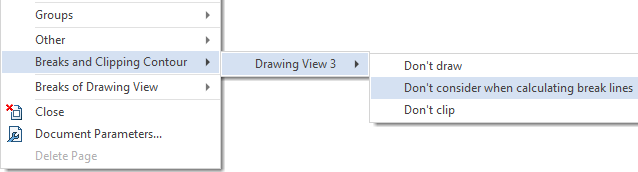

Select Breaks and Clipping Contour > Projection_# > Don't consider when calculating break lines in the appeared contextual menu:



10_ProjectionConsider1

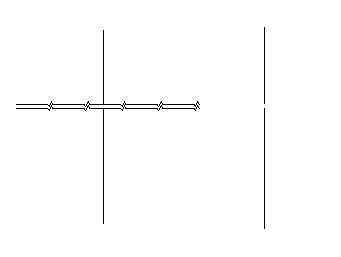

Break line doesn't reach the selected element anymore:

NewProjectionConsider3
