Grid of Workplanes

In T-FLEX CAD there is one more auxiliary tool for working with the workplanes – grid of workplanes.

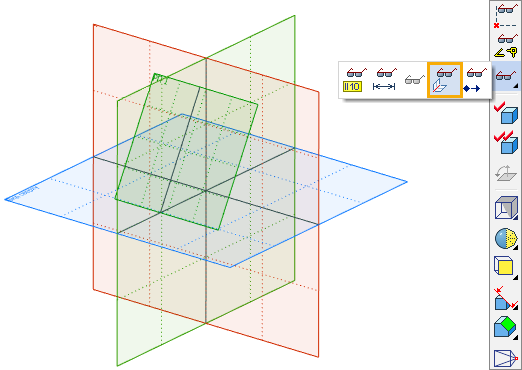

The grid of workplanes – is a set of lines of intersections of all workplanes of the model. Intersections are shown with the gray lines. Visibility of the grid is controlled with the Hide Workplanes Grid command of the View toolbar. By default, the grid is not displayed.

The nodes of the grid of workplanes can be used for snapping, once they are selected as geometric points in different 3D operations. In this case 3D nodes will automatically be created at the nodes of the grid.
