Solutions of Face Blend

Предыдущая страницаВ началоСледующая страница

Sometimes more than one blends can be created for the same set of faces. In the FaceBlend20x20 Face Blend command you can specify, which of the possible solutions should be created. Following solution options are available:

BlendFaceAns2 All
The command will create all possible blends.

BlendFaceAns1 Use Adjusting Point
To create only a particular blend, you can specify a 3D node, so the command will use the solution nearest to the selected node.

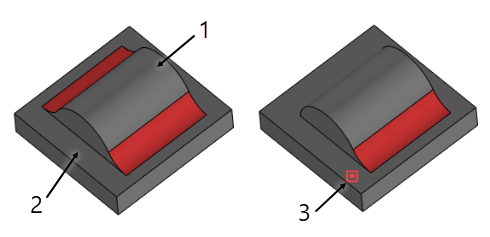

All solutions

Usage of adjusting point

14BlendFaceCreate10S

1. Left wall

2. Right wall

3. Selected node
