Pipeline Standards Editor > List of Standards

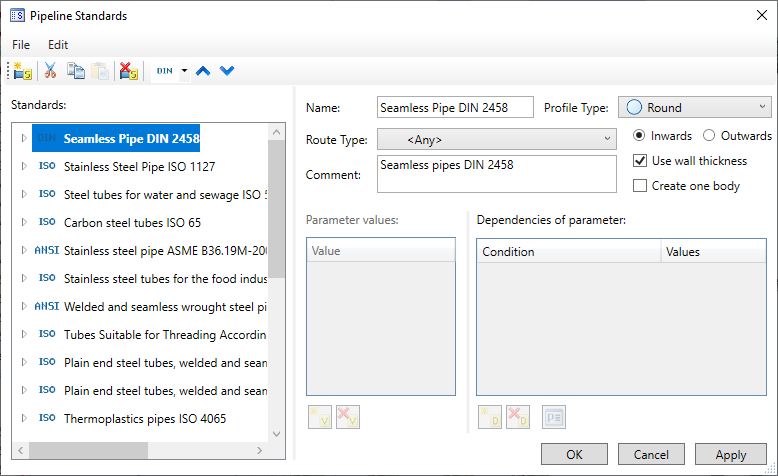

In the left part of the pipeline standards editor window there is the list of all available standards and pipeline parameters, which are defined by the standards. Standards can be selected in the list via . In the right part you may see the parameters of the standard selected in the list. The toolbar located above the list of standards can be used for managing the list.

The editor allows to edit current standards and add the new ones. To add a standard you need to press the button  in the toolbar or <Ctrl>+<N> on the keyboard, select standard type (ISO, DIN and so on) from the drop-down list and set all necessary parameters of the standard in the upper right part of the window.

Same hot keys are used for managing the list of standards, the list of parameter's values and the list of parameter's dependencies. The effect of using a hot key depends on which list is currently active.

Other buttons in the toolbar allow you to cut <Ctrl>+<X>, copy <Ctrl>+<C>, insert <Ctrl>+<V>, delete <Del> a standard or move it up and down the list.

Same commands are available in contextual menu of standards in the list and in the Edit section of the drop-down menu in the top of the window.
