Contextual Menu of Library File

In addition to the common commands, the contextual menu of files in the Library Explorer window contains following commands:

Copy Full File Path

Copies path to the selected file into clipboard.

Open

Allows to open the selected file in T-FLEX CAD.

Insert as Picture

Activates Picture command and inserts the selected file as a picture into the current open document.

Insert as Fragment

Allows to insert the selected file as a fragment into the current open document. Fragment or 3D Fragment command is activated according to the active - 2D or 3D - view in the document.

A library name can be used in the commands for inserting external files into a T-FLEX document, such as Fragment, Picture, 3D Fragment. For example, if a fragment drawing fragment.grb is located on the hard disk in the catalog C:\TFW32\LIB\FRAG, and there is a library named Parts referencing this path, then the following name can be used for inserting the fragment: <Parts>fragment. This way is convenient not only in that it replaces a long and possibly sludgy path with a slick one, but also helps to save paths to fragment files upon transferring documents to another disc or computer. You just need to open the library configuration.

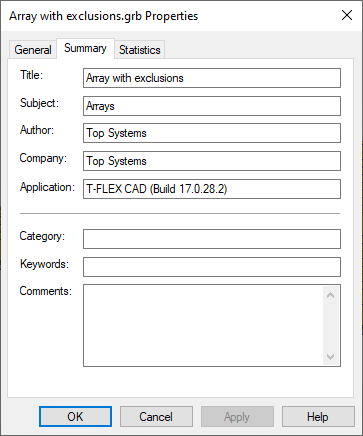

Properties

Calls the property dialog box of the selected file.

To have complete information displayed about the drawing, fill the informational fields in the Properties command.

To make a preview appear in the preview pane, create it by the Preview command.
